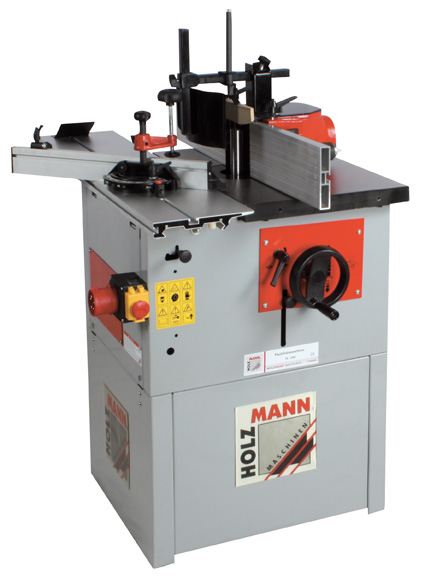

Holzmann spindle shaper FS 160L

€1,169.00 * €1,299.00 * (10.01% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

Spannung:

  • FS160L_400V
    motor data motor power s1 in W 1500 motor power s6 in W 2100... more
Product information "Holzmann spindle shaper FS 160L"


motor data
  • motor power s1 in W 1500
  • motor power s6 in W 2100
  • voltage 230V or 400V
measurements
  • sliding table in mm 1000x220
  • suction port in mm 100
  • table height in mm 850
  • table size in mm 600x400
milling and drilling
  • max. tool diameter below table in mm 150
  • spindle stroke in mm 110
  • milling spindle speed in min-1 1400/4000/6000/9000
  • milling spindle diameter in mm 30
  • max. clamping height in mm 105
  • table opening in mm 170
  • mitre fence in mm 350x125
  • max. tool diameter above table 170
weight
  • gross weight in kg 114
  • net weight in kg 108
packaging
  • packaging length in mm 650
  • packaging width in mm 630
  • packaging height in mm 530
general data
  • EAN code 9120039901220

  • compact spindle shaper with torsion-resistant massive cast iron table and an extra long aluminium sliding table (1000x215mm)
  • additional exchangeable spindle with router collet for router bits
  • mitre fence tilting 60° left/right incl. workpiece stop and workpiece holder
  • A versatile space-saving compact machine with a wide area of application and a small footprint - best choice for woodworking enthusiasts with workspace constraint
  • Dynamically balanced spindle ensures precise run
  • Security first: CE approved safety hood, height adjust able material guide rail and security cover, micro-switch, emergency off button
  • exchangeable spindle with router collet (Ø12,7mm),
  • mitre fence, clamp, fixing tool

included in delivery: spindle shaper hood, mitre fence, changeable spindle
