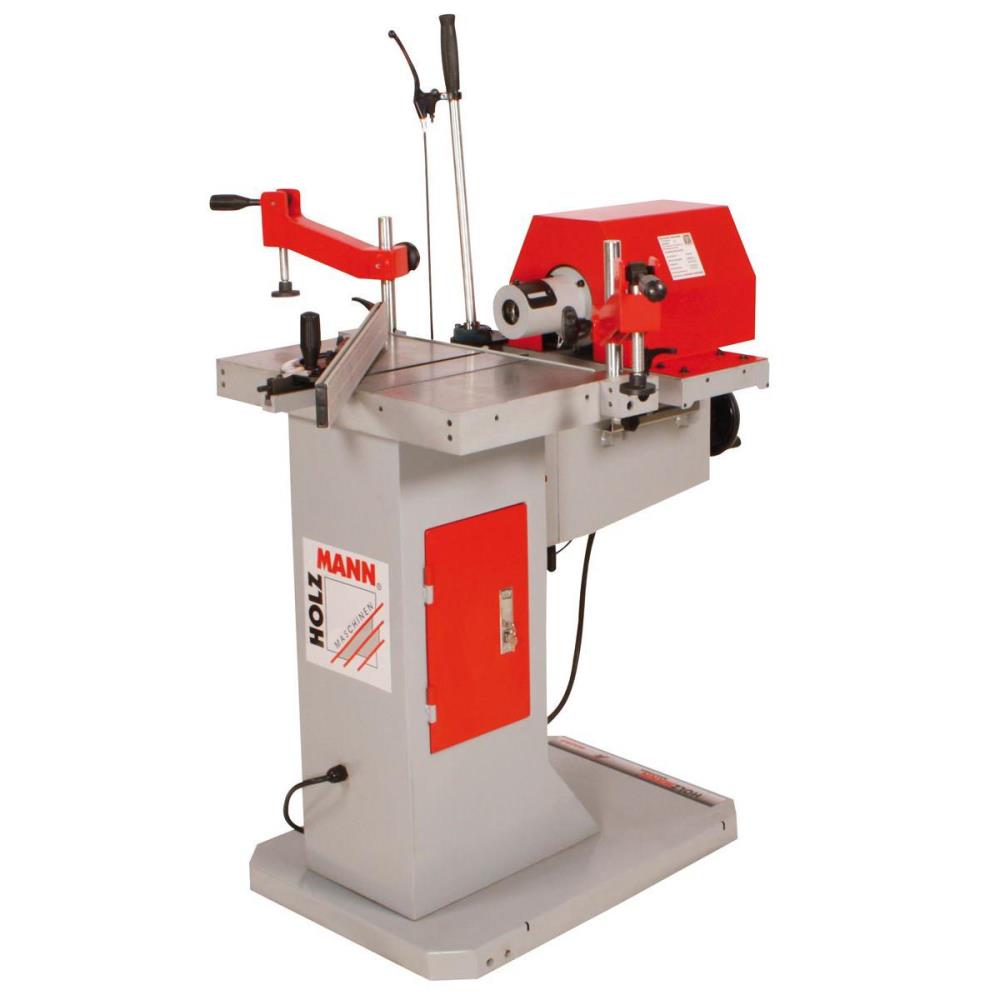

Holzmann morittising machine LBM290K

€1,799.00 * €1,999.00 * (10.01% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Spannung:

  • LBM290K_230V
      motor data speed in min-1... more
Product information "Holzmann morittising machine LBM290K"



motor data
  • speed in min-1 1400/2800
  • motor power s1 in W 3800
  • motor power s6 in W 5300
  • voltage 230V or 400V

measurements
  • suction port in mm 100
  • table extension in mm 600x300

drilling wood
  • max. drilling depth in mm 155
  • max. drilling width in mm 290

weight
  • gross weight in kg 160
  • net weight in kg 140

packaging
  • packaging length in mm 855
  • packaging width in mm 600
  • packaging height in mm 1.160

general data
  • EAN code 9120039902333 (400V)
  • EAN Code 9120039902340 (230V)








  • drilling head enables high precision
  • optional with 3 extension tables and supporting legs for easy and save handling of large workpieces (LBM 290KAL)
  • pin drilling device with 4 different defined positions (16-20-22-25mm)
  • dual-sided adjustable longitudinal end stops for serial drilling standard with left-right run
  • easy and comfortable one hand operation feasible
  • table extensions front (optional): 600x300mm, side: 595x260mm
  • machine dimensions: 800x900x1500mm
  • machine dimensions incl. extensions:2600x1530x1500mm
  • incl. adapter for mortising drills

included in delivery: 1 mortising drill 10mm, 4 adapters for mortising drill (19mm, 20mm, 28mm,30mm), pin drilling device, mitre gauge, eccentric clamp, tools
