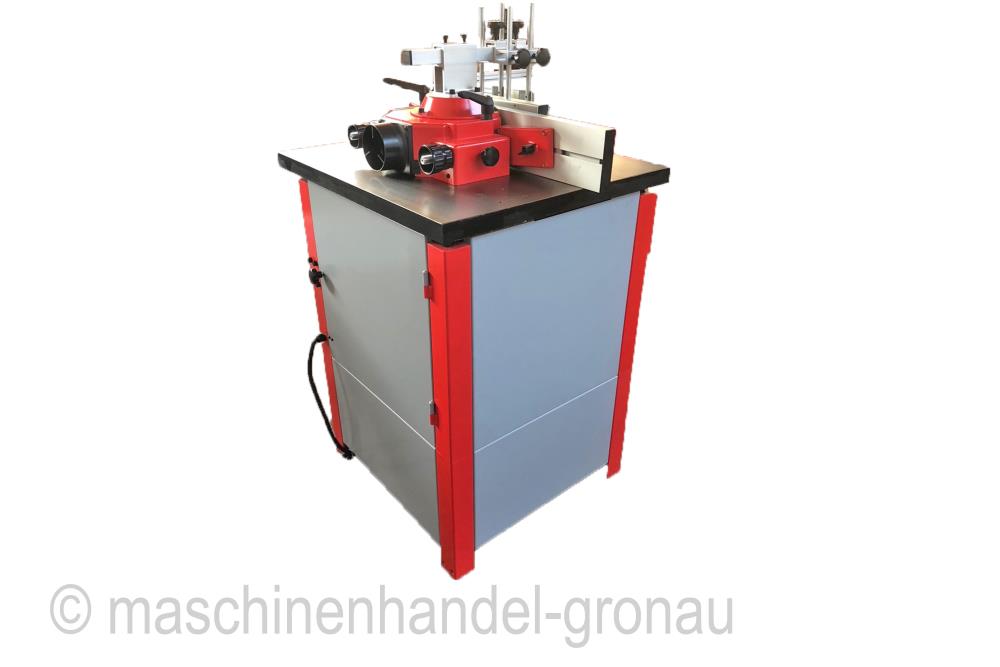

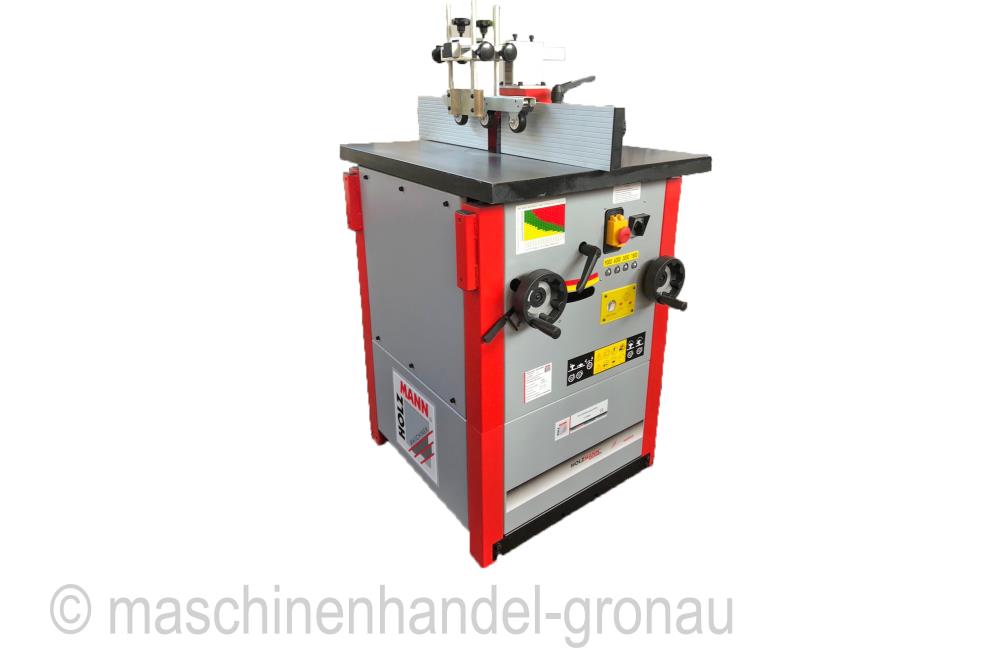

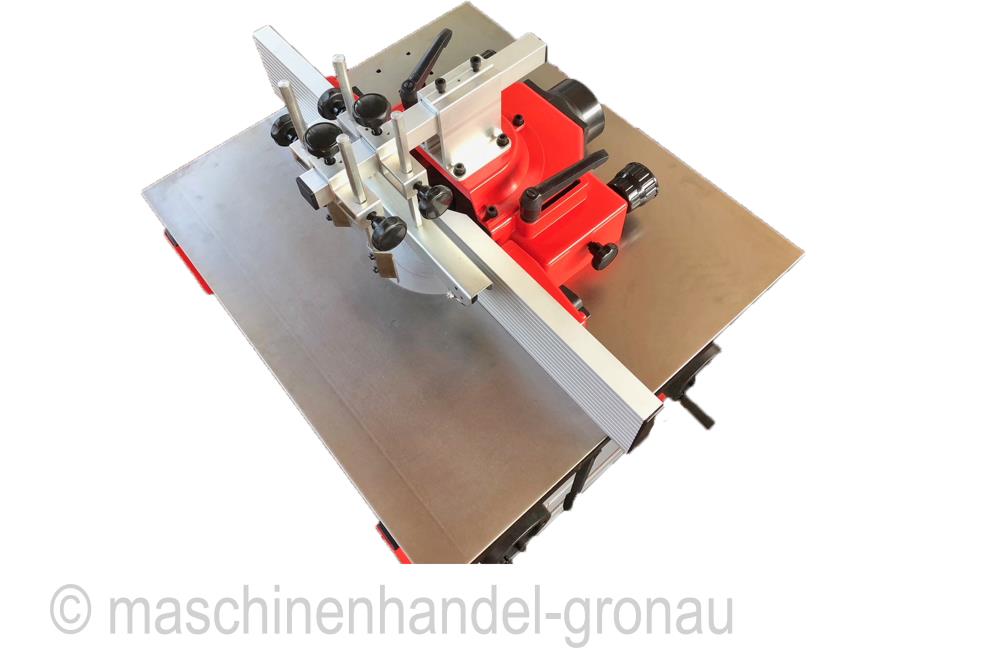

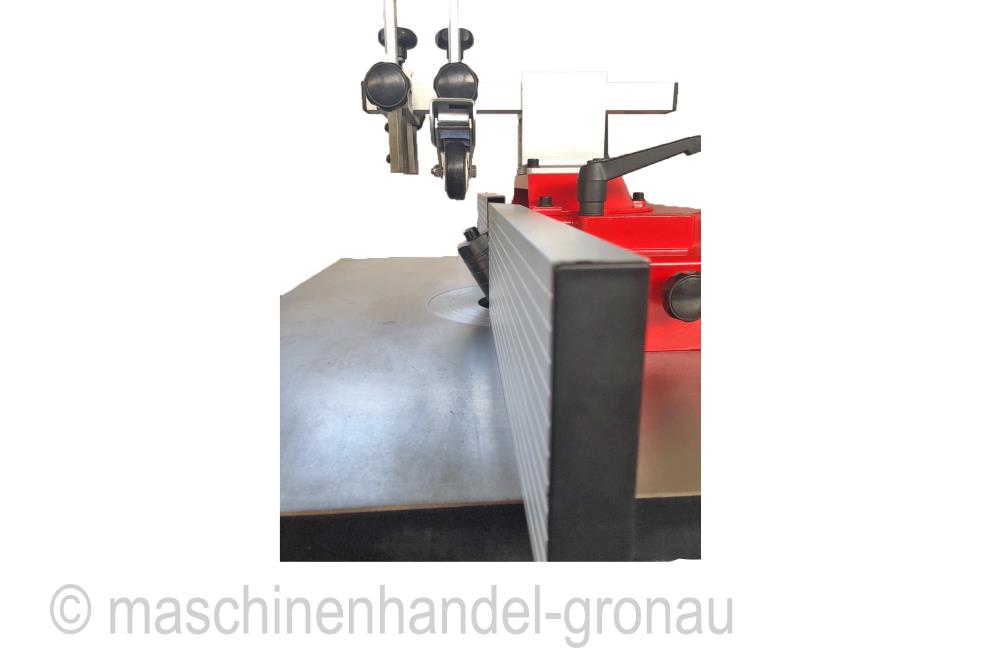

Holzmann spindle shaper FS 200S

€1,799.00 * €1,999.00 * (10.01% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

Spannung:

  • FS200S_230V
    motor data motor power s1 in W 2800 motor power s6 in W 3750... more
Product information "Holzmann spindle shaper FS 200S"


motor data
  • motor power s1 in W 2800
  • motor power s6 in W 3750
  • voltage 230V or 400V
measurements
  • suction port in mm 100
  • table height in mm 900
  • table size in mm 710x640
milling and drilling
  • max. tool diameter below table in mm 190
  • milling spindle swivel -5° +30°
  • max. clamping height in mm 105
  • spindle stroke in mm 100
  • milling spindle speed in min-11800/3000/6000/9000
  • milling spindle diameter in mm 30
  • table opening in mm 200
  • mitre fence in mm 360x120
  • max. tool diameter above table 190
weight
  • gross weight in kg 191
  • net weight in kg 170
packaging
  • packaging length in mm 760
  • packaging width in mm 690
  • packaging height in mm 700
general data
  • EAN code 9120039905242

  • tiltable spindle from -5° - +30°
  • solid and torsion-resistant grey cast iron table
  • high quality shaper hood with aluminium fences featuring indepent micro adjustment
  • 4 different spindle speeds as standard
  • max. tool diameter 200mm
  • electronical speed indication via LED’s
  • handy spindle adjustment wheels
  • sliding table optional and retrofitable
  • sanding roller included in delivery

included in delivery: sanding tool, spindle shaper hood, mitre fence, down holder system
