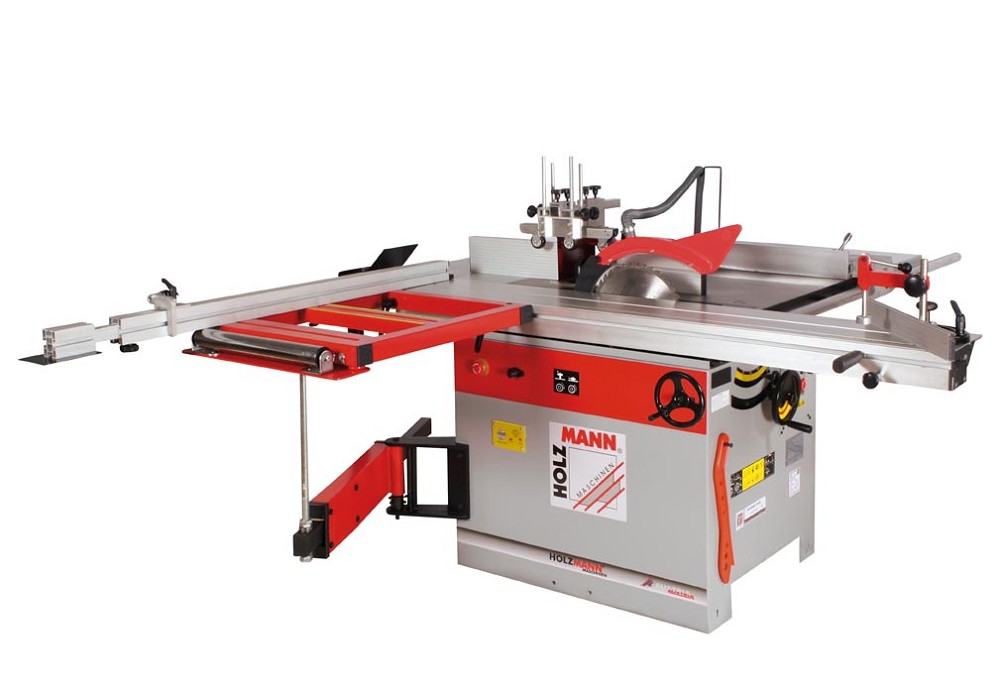

Holzmann circular saw - spindle shaper combination KF 315VF-2000

€4,319.00 * €4,799.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Spannung:

  • KF315VF-2000_400V
      motor data motor power s1 in W 3800 / 2800 motor power... more
Product information "Holzmann circular saw - spindle shaper combination KF 315VF-2000"



motor data
  • motor power s1 in W 3800 / 2800
  • motor power s6 in W 5100 / 4000
  • voltage 230V or 400V

measurements
  • outrigger table in mm 750x590
  • sliding table in mm 2000x270
  • suction port in mm 2x100
  • table widening in mm 860x440 / 500x450
  • table height in mm 850
  • table size in mm 860x890

cutting performance
  • max. trimming in mm 2200
  • max. cutting height 90° in mm 100
  • max. cutting height 45° in mm 80
  • max. cutting width at parallel fence in mm 1330

milling and drilling
  • max. tool diameter above table 200
  • mitre fence in mm 360x120
  • table opening in mm 190
  • max. tool diameter below table in mm 180
  • max. clamping height in mm 100
  • spindle stroke in mm 100
  • milling spindle speed in min-1 1800/3000/6000/9000
  • milling spindle diameter in mm 30

circular saws
  • sawblade in mm 315
  • scoring sawblade in mm Ø100
  • sawblade speed in min-1 4500
  • scoring unit speed in min-1 8500

weight
  • gross weight in kg 425
  • net weight in kg 310

packaging
  • packaging length in mm 990
  • packaging width in mm 825
  • packaging height in mm 1.035

general data
  • EAN code 9120039902876




  • The KF 315VF-2000 impresses with its cleanest workmanship of highest value. This circular saw - spindle shaper combination manages cutting of plates with very big dimensions.
  • back extension table and rip fence guide bar can be clap ped down fast and with ease
  • solid and smoothly running rip fence with quick fastening clamp
  • tiltable and height adjustable circular saw blade with scoring unit
  • cast iron table with table extension in the back and left with support leg
  • extractable mitre fence with worpiece end stop
  • support roller at the outrigger table eases the work piece allocation
  • XL cutting width at the rip fence with max. 1330mm
  • eqipped with 2-piece scoring blade as standard

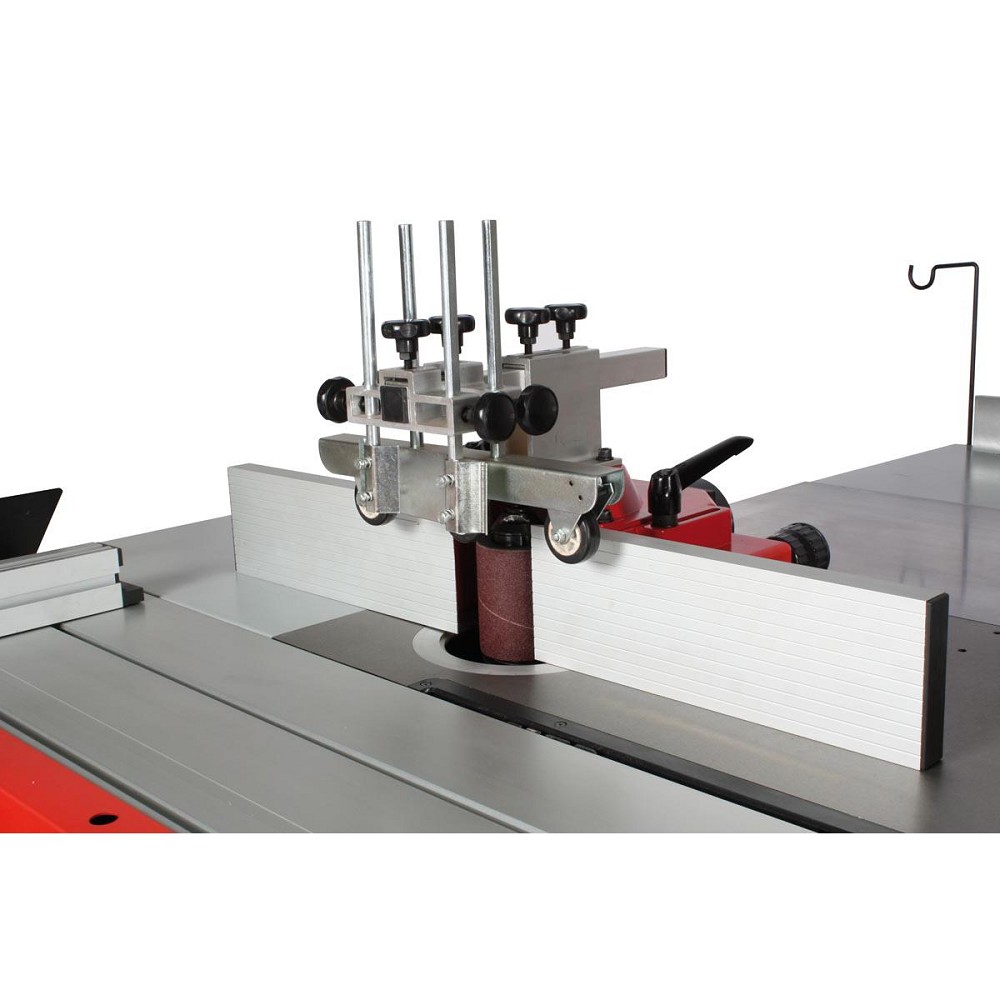

  • high quality shaper hood with roller guides, protective plate and fine adjustable aluminium fences
  • 4 spindle shaper speeds covering very large speed range (1800-9000rpm)
  • electronical speed indication via LED’s
  • max. tool diameter 200mm, handy and removable spindle adjustment wheel
  • comes with sanding roller as standard, enabling sanding operation at 1800prm

included in delivery: scoring unit, 1pcs T.C.T. saw blade Ø315mm 1pcs T.C.T. scoring blade Ø100mm, mitre gauge, rip fence, telescopic fence
