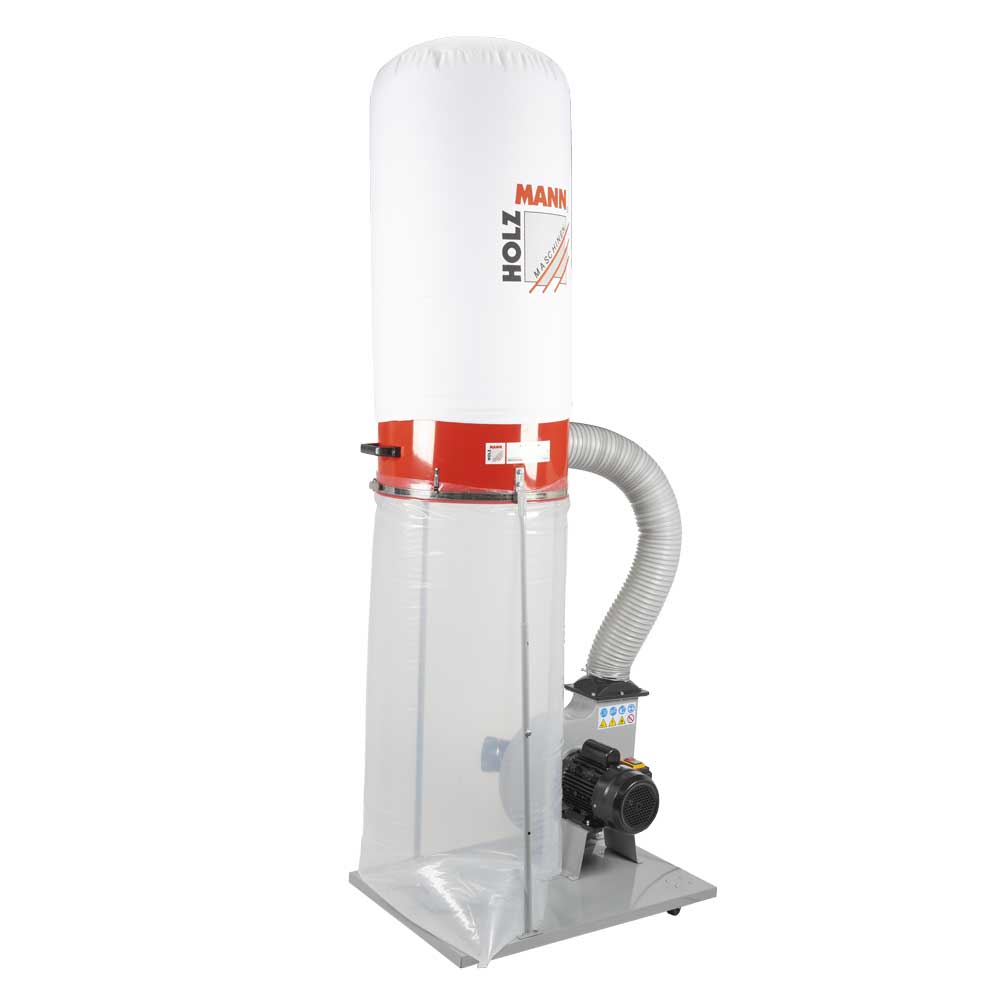

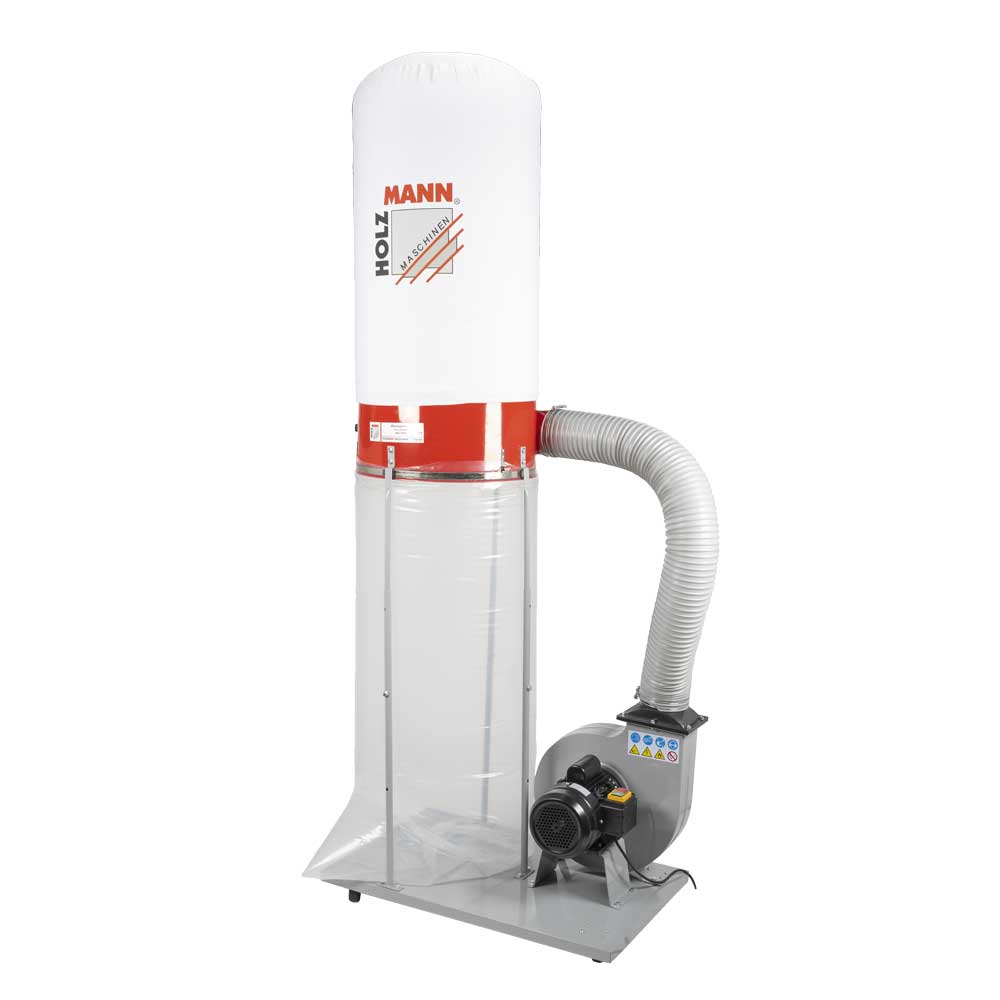

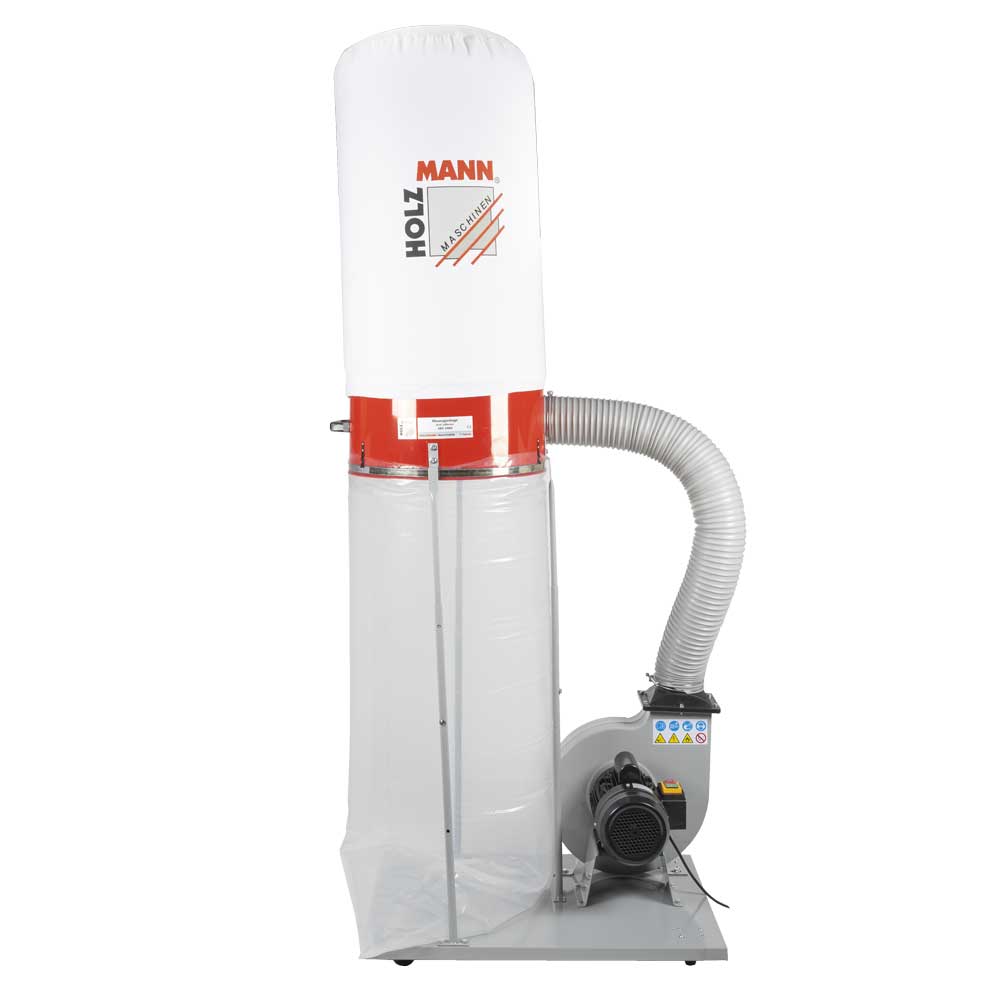

Holzmann dust collector ABS2480

€359.00 * €399.00 * (10.03% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Spannung:

  • ABS2480_400V
      motor data speed in min-1 2950 motor power s1 in W 1100... more
Product information "Holzmann dust collector ABS2480"


 motor data
  • speed in min-1 2950
  • motor power s1 in W 1100
  • motor power s6 in W 1500
  • voltage 230V or 400V
measurements
  • max. height in mm 2400

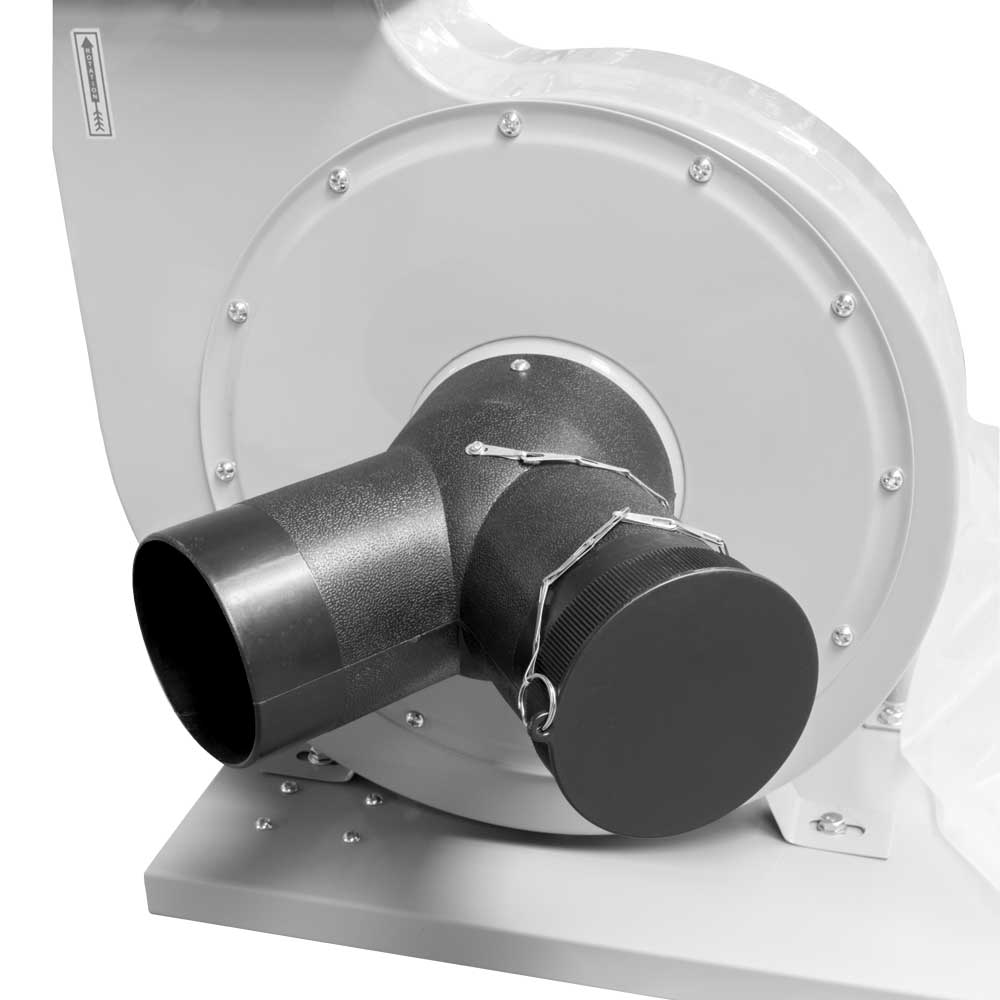

  • suction port in mm 2x100
dust collectors
  • hypotension in Pa 1080
  • fan diameter in mm 305
  • chip bag length in mm 1480
  • chip bag diameter in mm 500
  • chip bag capacity in l 300
  • suction performance in m³/h 2480
volume level and vibration
  • sound pressure level in dB(A) 87.1
  • sound power level in dB(A) 100.1
weight
  • gross weight in kg 39
  • net weight in kg 37
packaging
  • packaging length in mm 920
  • packaging width in mm 580
  • packaging height in mm 580
general data
  • EAN code 9120039900582 (400V)
  • EAN Code 9120039901930 (230V)



  • stable sheet metal construction and excellent air flow perfomance
  • resistent riveted metal fan
  • big chip bag capacity therefore low maintenance rate
  • smart design enables high air velocity and improved (CFM) performance
  • designed for steady performancy at continuous duty
  • perfect cost-performance ratio
  • high suction performance thanks to large filter surface
  • moves around workshop effortlessly on 4 swivel casters.

included in delivery: moving device, connection hood, dust- and chip bag set



Our service for you:

         anleitung-dl

Related links to "Holzmann dust collector ABS2480"
Read, write and discuss reviews... more
Customer evaluation for "Holzmann dust collector ABS2480"
4 Oct 2019

Preis Leistung Stimmt

Bei einem Besuch im Maschinenhandel Gronau wurde mir diese Absaugung für die Verwendung mit der Hobelmaschine HOB 305 pro empfohlen.
Die Maschine wurde gut verpackt bei mir angeliefert. Der Zusammenbau ist relativ simpel und lässt sich gut bewerkstelligen. Etwas nervig ist das hin und her blättern in der Montageanleitung. Würden hier in den erklärten Bauschritten direkt die Schraubengrößen und Bezeichnungen stehen, müsste man nicht immer zur Explosionszeichnung blättern um heraus zu lesen, welche Schraube wo hin gehört. Der Staubfangsack macht einen stabilen Eindruck und auch der Stoffsack ist gefühlt aus einem sehr dicken Material oder gar mehrlagig. Das macht sich im Betrieb aus, da hier wenig Feinstaub durchgedrückt wird.
Nach mehreren Abenden intensiven Hobelns, habe ich den Sack bereits mehrmals getauscht, was mit der einsetzenden Übung leicht von der Hand geht. Die integrierten Halteklammern für den Sack helfen einem enorm und machen eine dritte oder vierte Hand überflüssig. Obwohl die Saugleistung gut zur Maschine zu passen scheint, war das Gitter am Übergang vom Schlauch zum Lüfterrad schon mal verstopft. Es ist echt enorm was hier an Späne entsteht. Eine kleinere Anlage hätte da mit Sicherheit weniger Freude gemacht.
Als einziges wirkliches Manko der Anlage sehe ich den Nullspannungsschutzschalter, der ein Wiedereinschalten verhindert. In Kombination mit der Anlauf- und Nachlaufautomatik verhindert dieser das automatische Anlaufen der Maschine, was echt nervig ist. Hier wünsche ich mir eine andere Lösung um die Absaugung auch vernünftig mit der Automatik betreiben zu können, weshalb ich nur 8 von zehn Punkten vergebe. Ansonsten finde ich Preis Leistung der Maschine fair.
