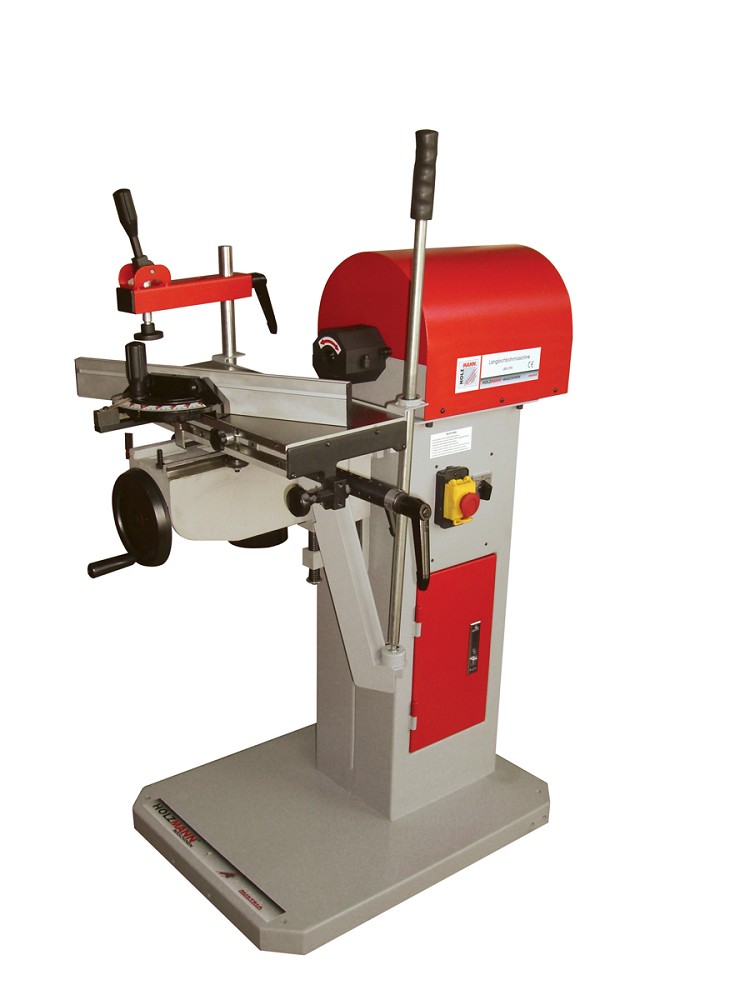

Holzmann mortising machine LBM290
- Order number: LBM290_230V
motor data motor power s1 in W... more
Product information "Holzmann mortising machine LBM290"
motor data
- motor power s1 in W 2200
- motor power s6 in W 3100
- voltage 230V or 400V
measurements
- table size in mm 500x210
- table stroke in mm 140
drilling wood
- pin point distances in mm 16/22/25/32
- max. drilling width in mm 290
- max. drilling depth in mm 140
weight
- gross weight in kg 117
- net weight in kg 97
packaging
- packaging length in mm 1.060
- packaging width in mm 550
- packaging height in mm 550
general data
- EAN code 9120039903958 (400V)
- EAN Code 9120039903965 (230V)
- precise and easy gliding table travel operated by multi-bedded lever
- handy and smooth-running table height adjustment via dove tail guidance
- two individual table height positions
- fine adjustable by hand wheel
- 100mm dust collector plug
- machine base cabinet for toolings
- pin drilling device with 4 different defined positions
- with left-right run and mitre fence
included in delivery: Wescott drill chuck 16mm, down holder, dusct collector hood, pin drilling device
