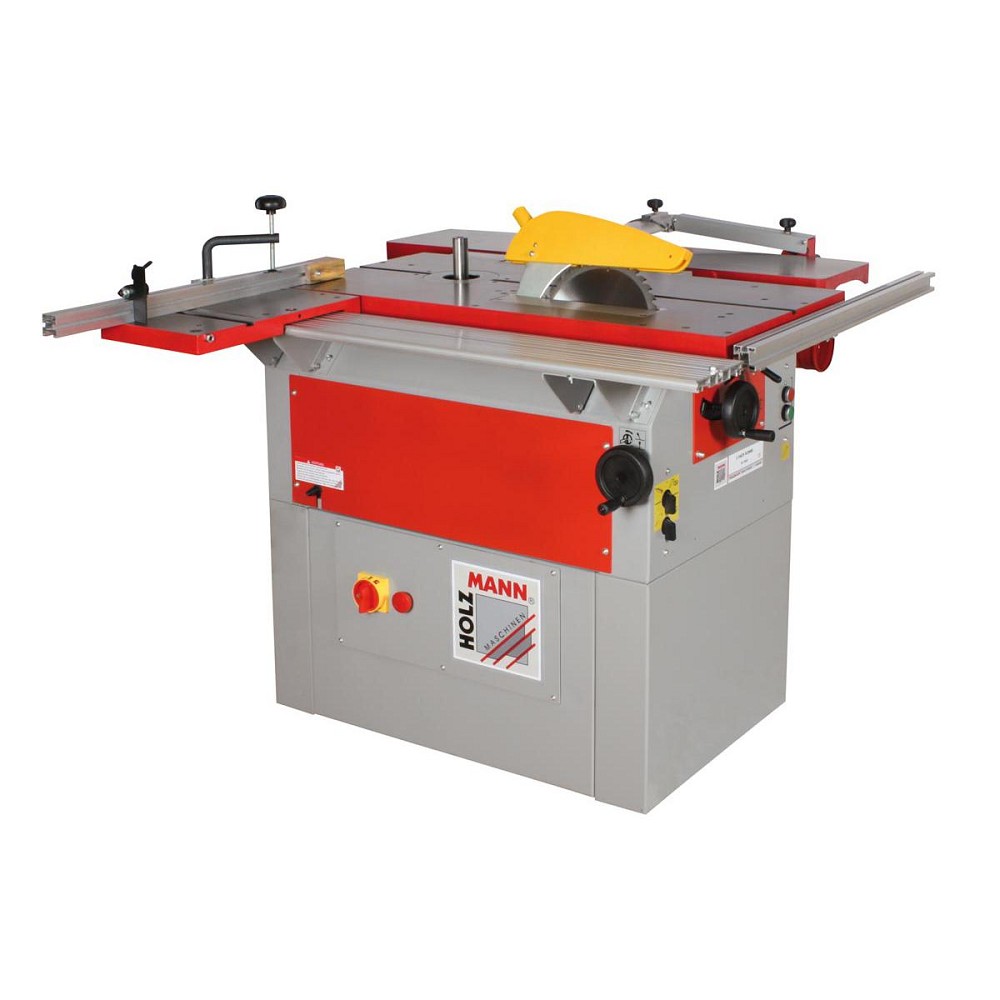

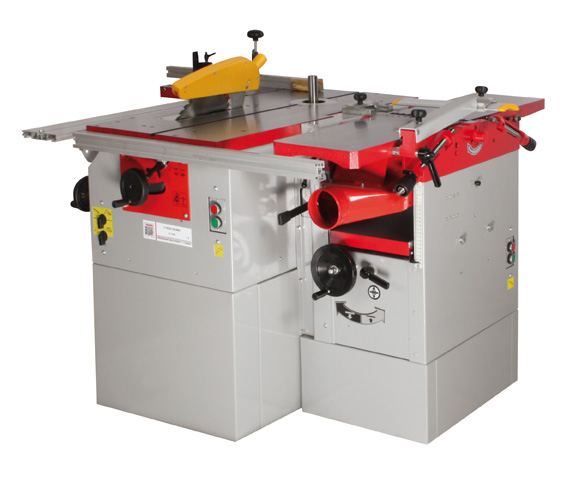

Holzmann combined operating machine K5 260L

€3,399.00 * €3,699.00 * (8.11% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

Spannung:

  • K5_260L_230V
  planing infeed table length in mm 1090 fence tilt 90-45° planer fence... more
Product information "Holzmann combined operating machine K5 260L"

planing
  • infeed table length in mm 1090
  • fence tilt 90-45°
  • planer fence in mm 715x130
  • max. thicknessing cutting depth in mm 5
motor data
  • motor power s1 in W 2200 / 1500 / 1500
  • motor power s6 in W 3100 / 2100 / 2100
  • feed speed 8
  • voltage 230V or 400V
measurements
  • sliding table in mm 250x400
  • suction port in mm 100
  • table height in mm 840
  • table size in mm 980x470
cutting performance
  • max. cutting height 90° in mm 78
  • max. cutting height 45° in mm 60
  • max. cutting width at parallel fence in mm 510
general planing
  • cutter knives amount 3
  • shaft speed in min-1 4500
  • shaft diameter in mm 75
milling and drilling
  • max. tool diameter above table 160
  • mitre fence in mm 350x125
  • table opening in mm 145
  • max. tool diameter below table in mm 140
  • max. clamping height in mm 80
  • spindle stroke in mm 100
  • milling spindle speed in min-1 6500
  • milling spindle diameter in mm 30
circular saws
  • sawblade in mm 254
  • sawblade speed in min-1 4750
weight
  • gross weight in kg 390
  • net weight in kg 375
packaging
  • packaging length in mm 1.300
  • packaging width in mm 1.170
  • packaging height in mm 970
general data
  • EAN code 9120039901244



  • compact universal combination machine with small foot print and optimal price/performance ratio best choice for woodworking enthusiasts with constrained
  • workshop capacity
  • saw-blade can be tilted with handwheel from 90 - 45°
  • large and precision-ground cast iron table with mitre gauge (+-45°) guided in T-slot
  • fast and convenient transformation between the operation modes with turn switch
  • each machine unit powered by an independent motor delivering long-lasting performance at duty
  • solid 3-knife cutterblock with pre-mounted HSS plane knives

included in delivery: shaper hood incl. guide rail and protective plate, mitre gauge incl. workpiece clamp, mitre fence incl. end stop, rip fence, tiltable (90-45°) planer fence, planer gauge, tools.
