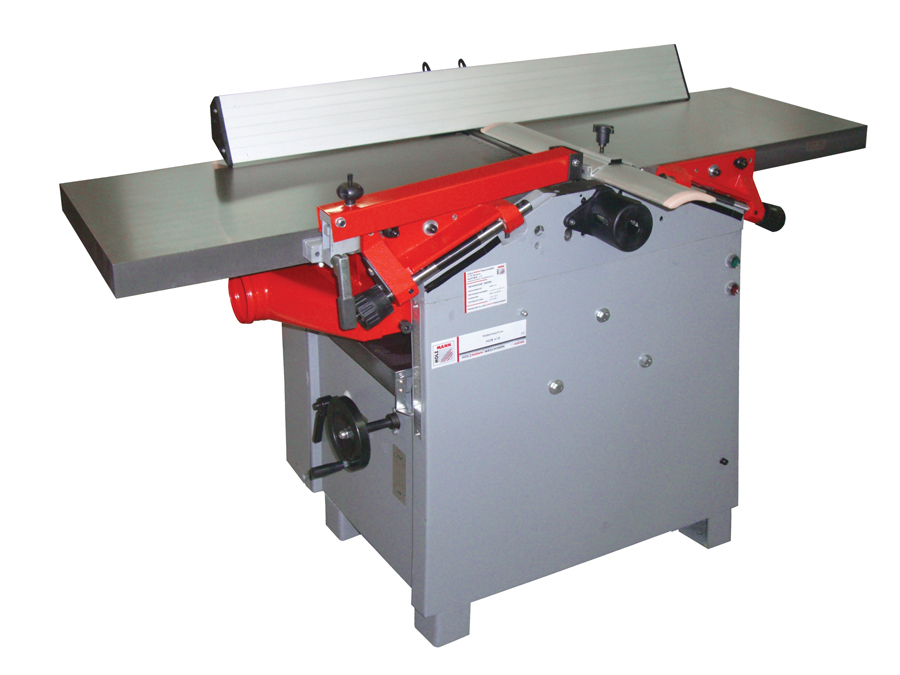

Holzmann comb. planer & thicknesser HOB 410N

€3,149.00 * €3,499.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • HOB410N
planing planing table size in mm 1600x410 fence tilt 45° -90° planer... more
Product information "Holzmann comb. planer & thicknesser HOB 410N"
planing
  • planing table size in mm 1600x410
  • fence tilt 45° -90°
  • planer fence in mm 1100x130
  • max. thicknessing cutting depth in mm 5
motor data
  • motor power s1 in W 3000
  • motor power s6 in W 4200
  • feed speed 8
  • voltage 400V
measurements
  • suction port in mm 100
thicknessing
  • table size in mm 750x405
  • cutting depth in mm 3
general planing
  • shaft diameter in mm 95
  • shaft speed in min-1 4500
  • cutter knives amount 4
volume level and vibration
  • thicknesser table height in mm 925
weight
  • gross weight in kg 399
  • net weight in kg 343
packaging
  • packaging length in mm 1.680
  • packaging width in mm 770
  • packaging height in mm 1.070
general data
  • EAN code 9120039902708

  • adjustable aluminium fence
  • collateral pivoting grey cast iron tables
  • solid cabinet base unit ensures high stability
  • for planing the infeed mechanism can be switched OFF
  • comfortable switch-plug combination
  • tiltable dust hood for thicknessing

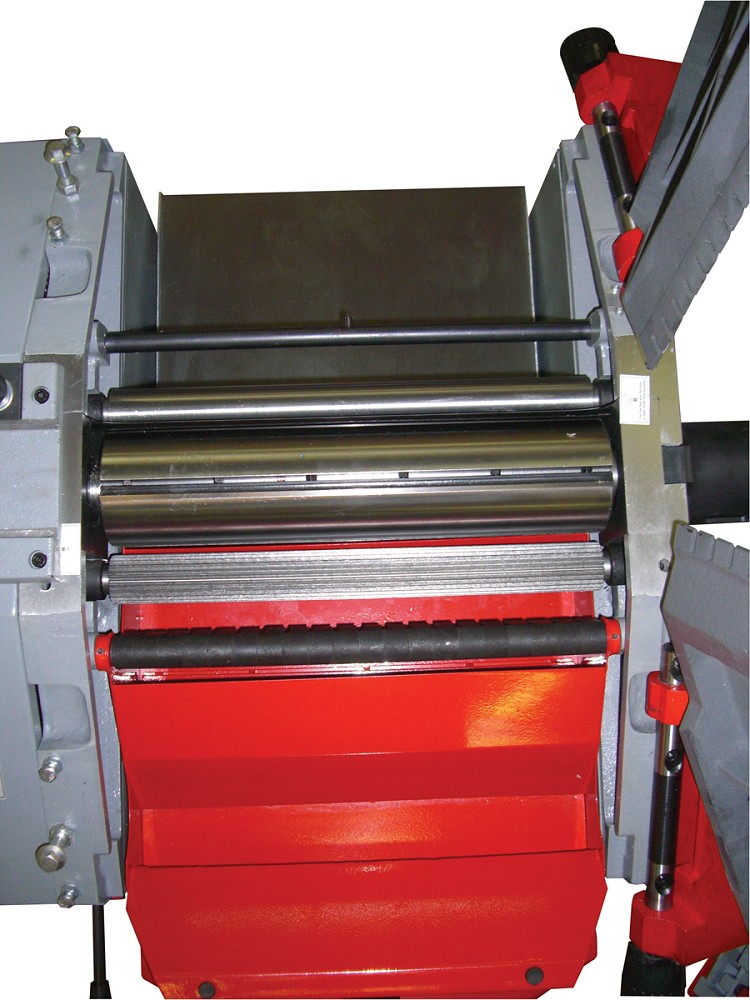

  • well bedded in- and out feeding rollers for perfect contact pressure
  • comfortable adjustment of the thicknessing table height with hand wheel
  • precise thicknessing table guidance through double guide
  • precise table adjustment via hand wheel and scale

included in delivery: resharpenable planer knives (4pcs), fence



Our service for you:

         anleitung-dl

Motorleistung in Watt: 3000
Gewicht in kg: 415
Hobelbreite in mm: 400
Messeranzahl: 4
