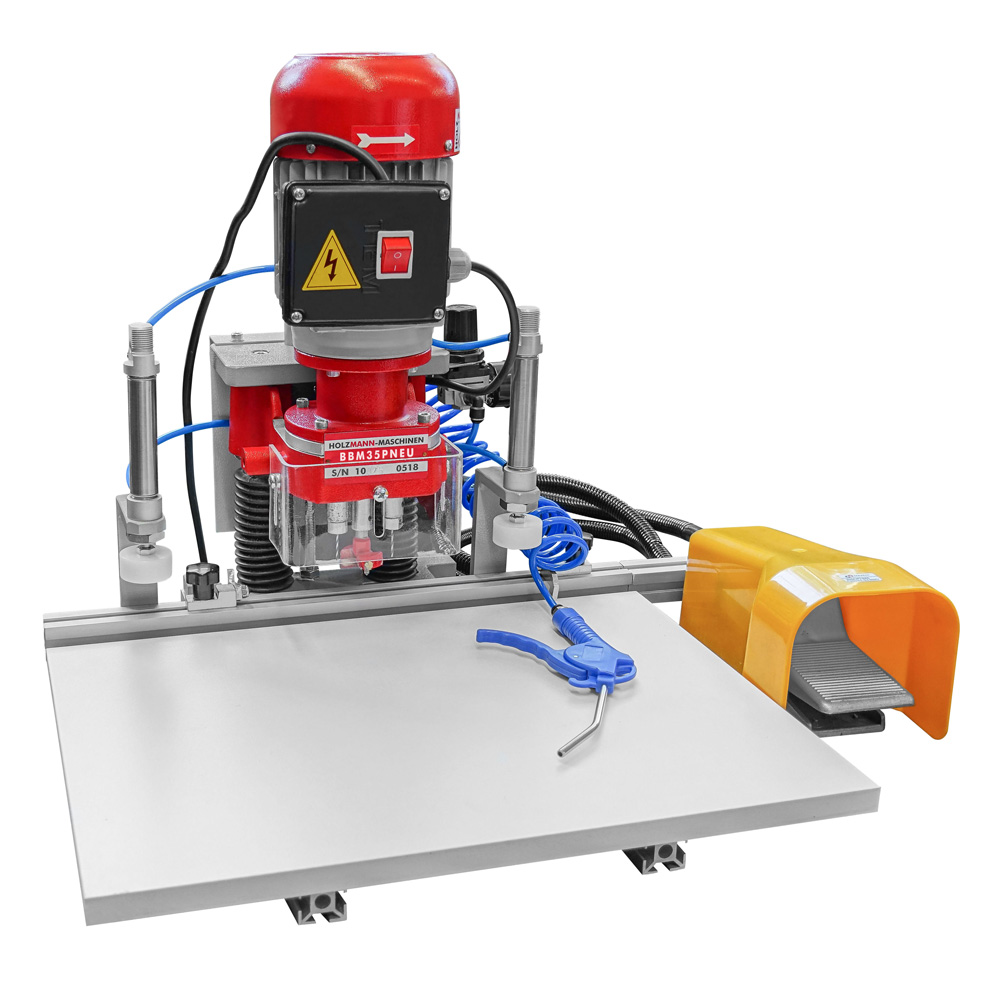

Holzmann hinge slot machine BBM35PNEU

€809.00 * €899.00 * (10.01% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • BBM35PNEU
    • 9120058376948
    • 28
      motor data motor power s1 in W... more
Product information "Holzmann hinge slot machine BBM35PNEU"



motor data
  • motor power s1 in W 750
  • voltage 230V 50Hz
  • speed in min-1 2800

measurements
  • table size in mm 500x350

workpiece measurements
  • min. workpiece length in mm 180

milling and drilling
  • max. distance spindle-table in mm 80

drilling wood
  • max. drilling depth in mm 20

weight
  • gross weight in kg 28
  • net weight in kg 26

packaging
  • packaging width in mm 550
  • packaging length in mm 550
  • packaging height in mm 550

general data
  • EAN code 9120058376948




  • our hardware drilling machine has a pneumatic feed

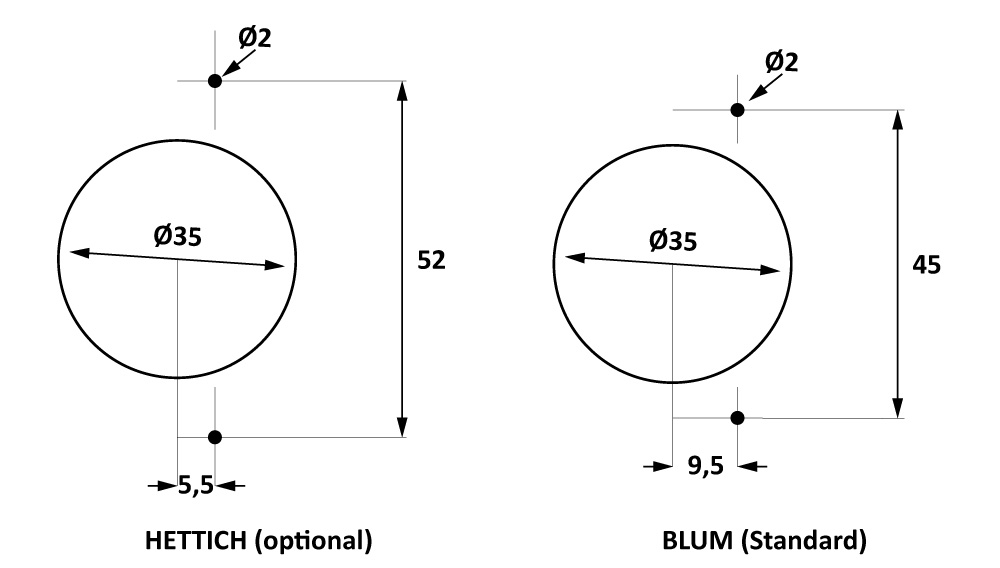

  • drilling pattern Blum, conversion to Hettich Drilling pattern with optional Hettich head possible
  • ideal for ambitious hobby craftsmen and small businesses
  • Diameter hinge cutter 35 mm
  • Diameter side drills 2 mm
