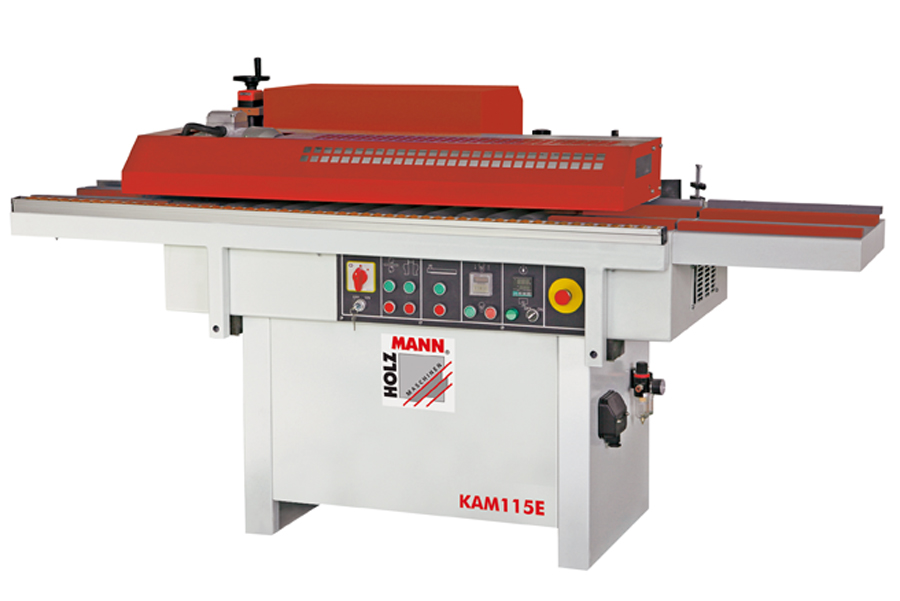

Holzmann edge banding machine KAM 115E

€7,199.00 * €7,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • KAM115E_SIEMENS
motor data motor power s1 in W 2490 feed speed 6.4 m/min... more
Product information "Holzmann edge banding machine KAM 115E"
motor data
  • motor power s1 in W 2490
  • feed speed 6.4 m/min
  • measurements
  • suction port in mm 100
  • table size in mm 2300x800
  • total dimensions in mm 2050x800x1070
workpiece measurements
  • max. workpiece thickness in mm 45
  • min. workpiece thickness in mm 10
  • min. workpiece length in mm 280
  • min. workpiece width in mm 90
edge banding
  • banding temperature in °C 190-200
  • required air pressure in bar 7
  • edge width in mm 12-48
  • edge thickness in mm 0,4-3
weight
  • gross weight in kg 400
  • net weight in kg 350

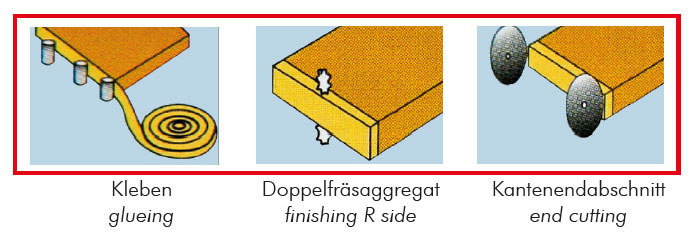

  • Automatic and precise glueing procedure as well as integrated double finishing R side and integrated end cutting unit within one workflow.
  • one-sided automatic edge banding machine
  • glue transfer directly to straight workpieces
  • stand by function (prevents to burn the glue
  • unit adjustment equipped with counter block for setting different edge types
  • LCD display controls glue temperature adjustment
