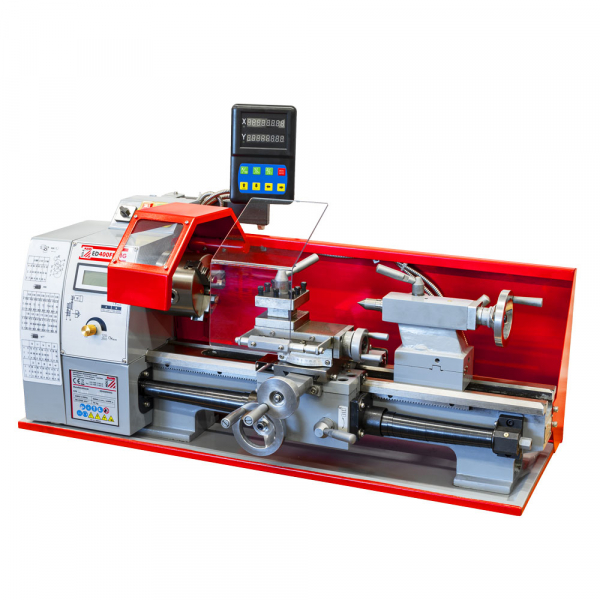

Holzmann metal urning lathe ED400FDDIG

€1,249.00 * €1,449.00 * (13.8% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

  • ED400FDDIG
  motor data motor power s1 in W 450 motor power s6 in W 630... more
Product information "Holzmann metal urning lathe ED400FDDIG"



motor data
  • motor power s1 in W 450
  • motor power s6 in W 630
  • voltage 230 V / 50 Hz
  • cable length 1,7m

measurements
  • total dimensions in mm 940 x 380 x 345
  • bed width in mm 100

turning machines
  • distance between centers in mm 400
  • max. swing over bed in mm 210
  • max. swing over cross slide in mm 134
  • lathe spindle speed in min-1 50-2500
  • spindle bore in mm 21
  • spindle nose mount MK3 / MT3
  • tailstock cone MK2 / MT2
  • longitudinal feed 0,089 / 0,147 / 0,198 mm/U
  • carriage travel in mm 376
  • cross slide travel in mm 80
  • compound slide travel in mm 55
  • tailstock sleeve travel 55
  • range of metric threads in mm/r 0,5 -3 (14)
  • range of inch threads 8 - 44 TPI (10)
  • max. tool holder cross-section 10

weight
  • gross weight in kg 77
  • net weight in kg 70

packaging
  • packaging width in mm 450
  • packaging length in mm 900
  • packaging height in mm 450

general data
  • EAN code 9120058378065



  • serially equipped with leadscrew for thread cutting and automatic longitudinal feed
  • induction-hardened and precision ground prismatic bed way guides
  • hardened main spindle bedded with adjustable taper roll bearings
  • high spindle centricity assures maximal turning accuracy
  • spindle speed steplessly adjustable, speed can be read off conveniently from digital speed display
  • comes with change gears delivering an exceptionally broad thread cutting range
  • guides conveniently adjustable via V-ledges ensuring precision for many years
  • powerful, maintenance free motor with undervoltage release
  • smooth power transmission delivers constant torque
  • tailstock can be adjusted for taper turning
  • CW/CCW run mode
  • note: Machine runs at half speed when reversing.

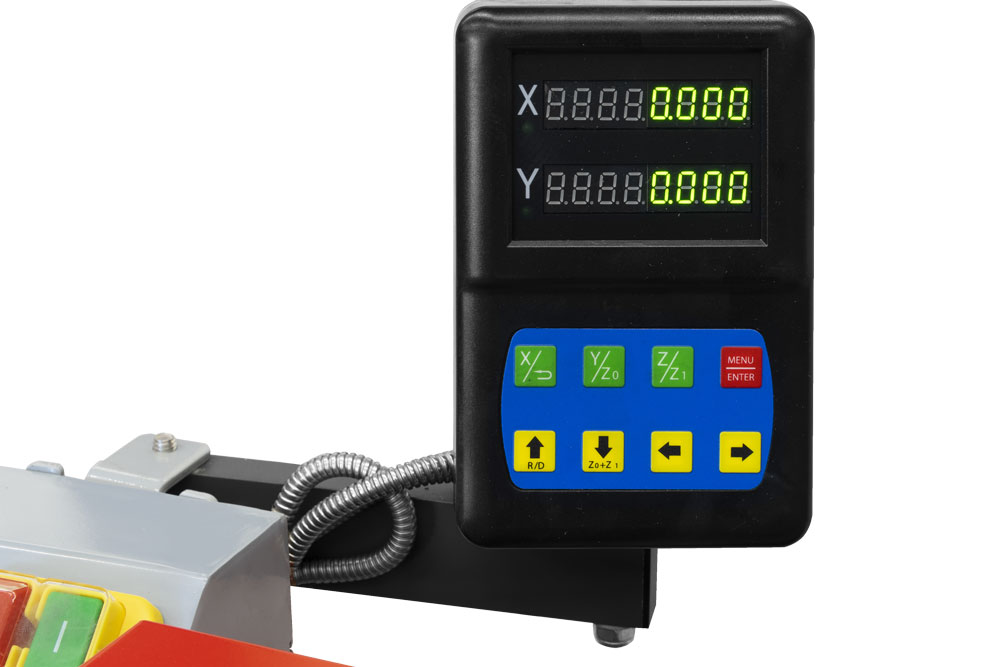

  • 2-axis digital read out (DRO)

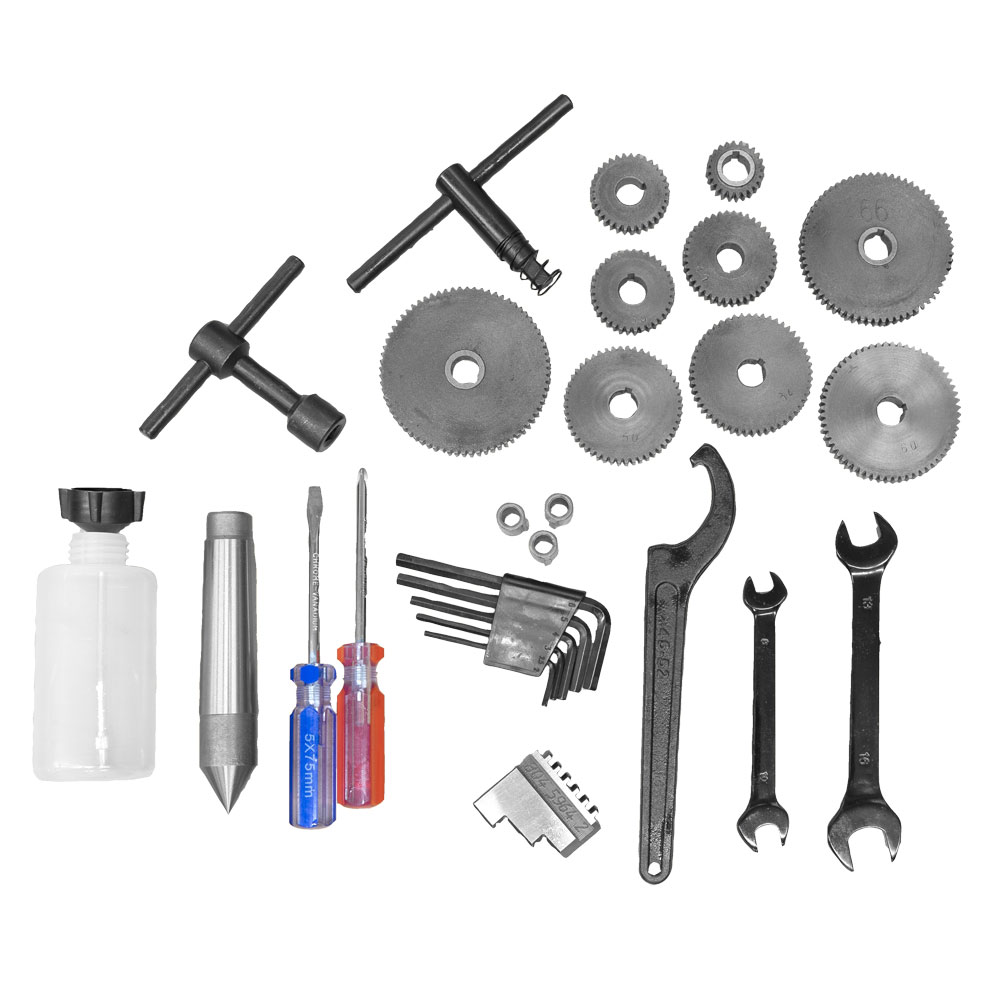

included in delivery: 3-jaw chuck Ø 100mm, 4-way tool post, dead center MT3, dead center MT2, chuck guard, chip tray, change gears, tools
