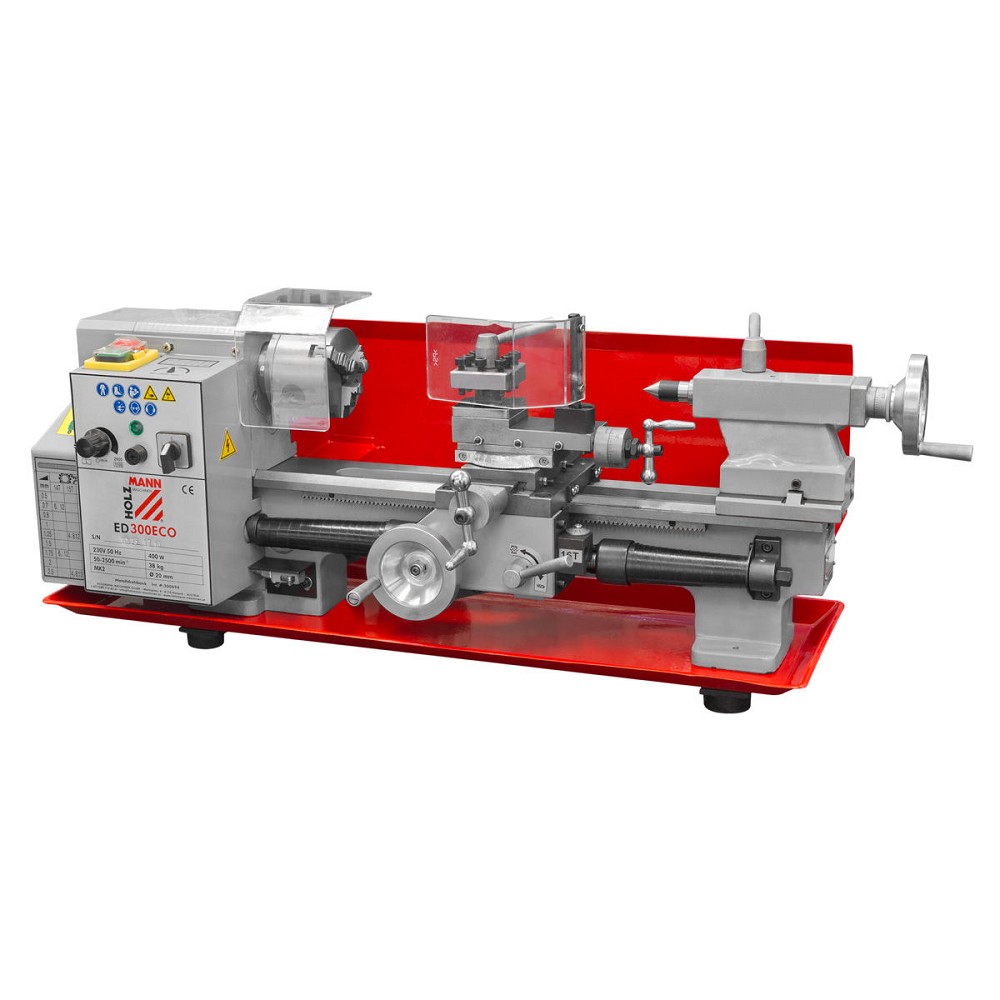

Holzmann metal lathe ED3000ECO

€719.00 * €799.00 * (10.01% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

  • ED300ECO
motor data motor power s1 in W 400 motor power s6 in W 560... more
Product information "Holzmann metal lathe ED3000ECO"
motor data
  • motor power s1 in W 400
  • motor power s6 in W 560
  • voltage 230V 50Hz
  • total dimensions in mm 760x230x254
turning machines
  • distance between centers in mm 300
  • center height in mm 90
  • max. swing over bed in mm 180
  • max. swing over cross slide in mm 105
  • lathe spindle speed in min-1 50-2500
  • spindle bore in mm 20
  • spindle nose mount MK3
  • tailstock cone MK2
  • carriage travel in mm 275
  • cross slide travel in mm 70
  • compound slide travel in mm 70
  • tailstock sleeve travel 50
  • range of metric threads in mm/r 0,5-2,5
  • max. tool holder cross-section 8
  • net weight in kg 40
  • gross weight in kg 48
  • do it yourself model with a compact design
  • serially equipped with leadscrew for thread cutting and automatic longitudinal feed
  • induction-hardened and precision ground prismatic bed way guides
  • hardened main spindle bedded with adjustable taper roll bearings
  • high spindle centricity (< 0,009 mm) assures maximal turning accuracy
  • spindle speed steplessly adjustable
  • comes with change gears made of metal, delivering an exceptionally broad thread cutting range
  • guides conveniently adjustable via V-ledges ensuring precision for many years
  • powerful, maintenance free motor with undervoltage release
  • smooth power transmission delivers constant torque
  • tailstock can be adjusted for taper turning
  • CW/CCW run mode
