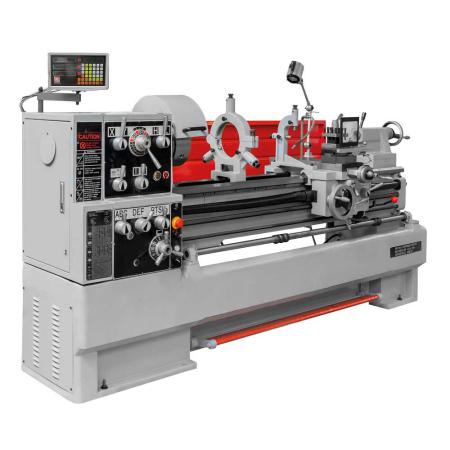

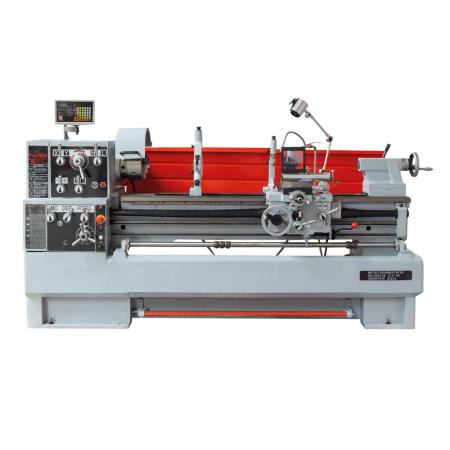

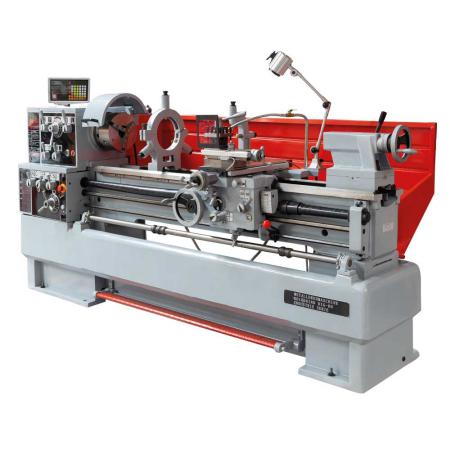

Holzmann metal turning lathe ED 1500IND DIG

€15,299.00 * €16,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • ED1500IND_DIG80
distance between centers 1500mm center height 230mm spindle speeds (12) 25-2000 rpm size... more
Product information "Holzmann metal turning lathe ED 1500IND DIG"

distance between centers 1500mm
center height 230mm
spindle speeds (12) 25-2000 rpm
size 2720x1040x1370mm
motor power S1 (100%) / S6 5,5kW/7,7kW
voltage 400V
net weight 2020kg
gross weight ca. 2330kg
packaging dimensions 1730x2800x1120mm
max. swing (Ø) over bed 460mm
max. swing (Ø) over cross slide 274mm
max. swing in gap 690mm
spindle bore 80mm
spindle taper MT6
tailstock taper MK4/MT4
spindle nose mount D1–6, DIN 55029
range of longitudinal feeds (42 steps) 0,031 – 1,7 mm/r
range of cross feeds (42 steps) 0,014 – 0,784 mm/r
Gewinde – Metrisch (41 Stufen) 0,1 – 14 mm/r
Gewinde – Zoll (60 Stufen) 2 – 112 Gg/1
cross slide travel 290mm
compound slide travel 120mm
stroke of tailstocks 120mm
size 2720x1040x1370mm
center height (2. Position) 230mm


with 3-axis DRO
heavy and vibration absorbing one-piece cast iron
machine bed assuring superior accuracy
very wide bedways with induction-hardened and precision ground prismatic guideways

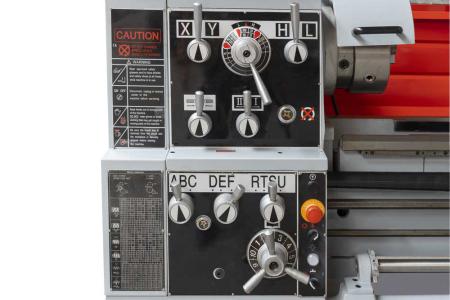

handy and easy operation via clearly designed control panel
removable bridge enables the machining of large
diameters in the gap bed section
4-position automatic kick-out longitudinal carriage stop
all guides conveniently adjustable via V-ledges
CAMLOCK D1-6, DIN 55029
tailstock can be offset for turning tapers
hardened and ground gears and spindles running in permanent oil bath lubrication
huge spindle bore (Ø =58mm)
electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
broad range of metric and imperial thread pitches selectable
includes as standard halogen lamp and coolant device
DRO optionally available

included in delivery:halogen lamp, 3-jaw chuck Ø250mm, 4-jaw chuck 250mm, face plate 350mm, reducing sleeve, thread dial, change gears, follow rest, steady rest, 4 way tool post, 2x dead centers, splash guard
