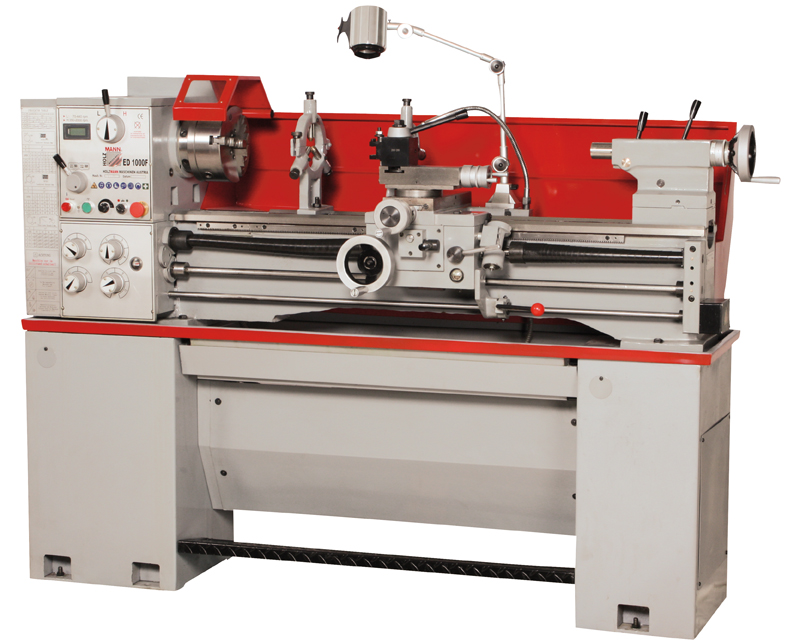

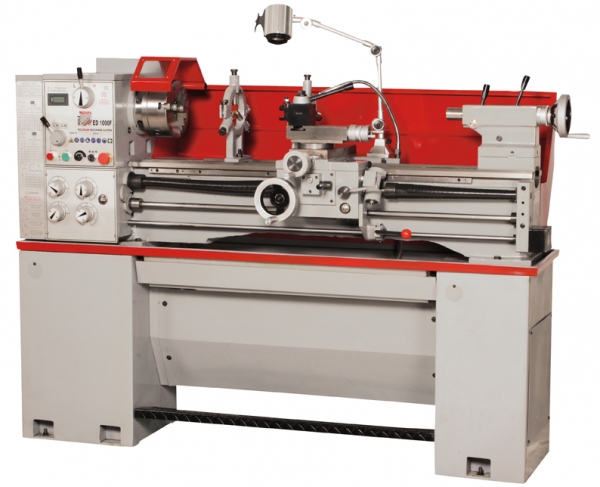

Holzmann metal turning lathe ED 1000F DIG

€6,929.00 * €7,699.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • ED1000F_DIG
distance between centers 1000mm center height 180mm spindle speeds 70-1900, 40-1800 rpm max.... more
Product information "Holzmann metal turning lathe ED 1000F DIG"

distance between centers 1000mm
center height 180mm
spindle speeds 70-1900, 40-1800 rpm
max. swing (Ø) over bed 330mm
max. swing (Ø) over cross slide 198mm
max. swing in gap 476mm
spindle bore 52mm
spindle taper MT6
tailstock taper MT4
spindle nose mount D1–5, DIN 55029
range of longitudinal feeds 0,078 – 1,044mm/r
range of cross feeds 0,022 – 0,298mm/r
range of metric threads (26 steps) 0,4 – 7 mm/r
range of Inch threads (31 steps) 4 – 56TPI
cross slide travel 205mm
compound slide travel 90mm
stroke of tailstocks 100mm
max. tool holder cross-section 20x20mm
motor power S1 (100%) / S6 1,5 kW / 2,1kW
voltage 400V
net weight 575kg
gross weight ca. 650kg
packaging dimensions 1520x1940x760mm

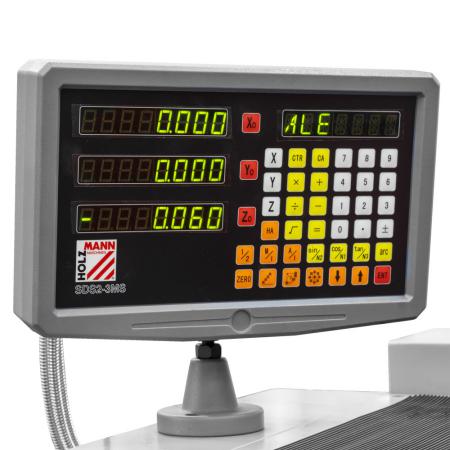

incl. 3 axis DRO

State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and delighting versatility
ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training purposes in schools
exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
removable bridge enables the machining of workpieces with diameters up to 476mm
Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
Gears and spindles are hardened, ground and running in an oil bath
Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
variable speed setting due to frequency converter, speed can be read off conveniently from the digital speed display
Camlock D1-5 DIN 55029 spindle nose
adjustable (+/- 5mm) tailstock for taper turning
All guides conveniently adjustable via V-ledges

included in delivery: 3-jaw chuck Ø 200mm with exchange jaws, 4-jaw chuck Ø 200mm, face plate Ø 250mm, 2x dead centers MT4, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, coolant device, stand with spindle brake, threading, change gears, tools
