€7,399.00 * €7,999.00 * (7.5% Saved)
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 3-5 workdays
- Order number: ED1080A_DIG
motor data motor power s1 in W 2,2 kW voltage 400V / 3 / 50Hz... more

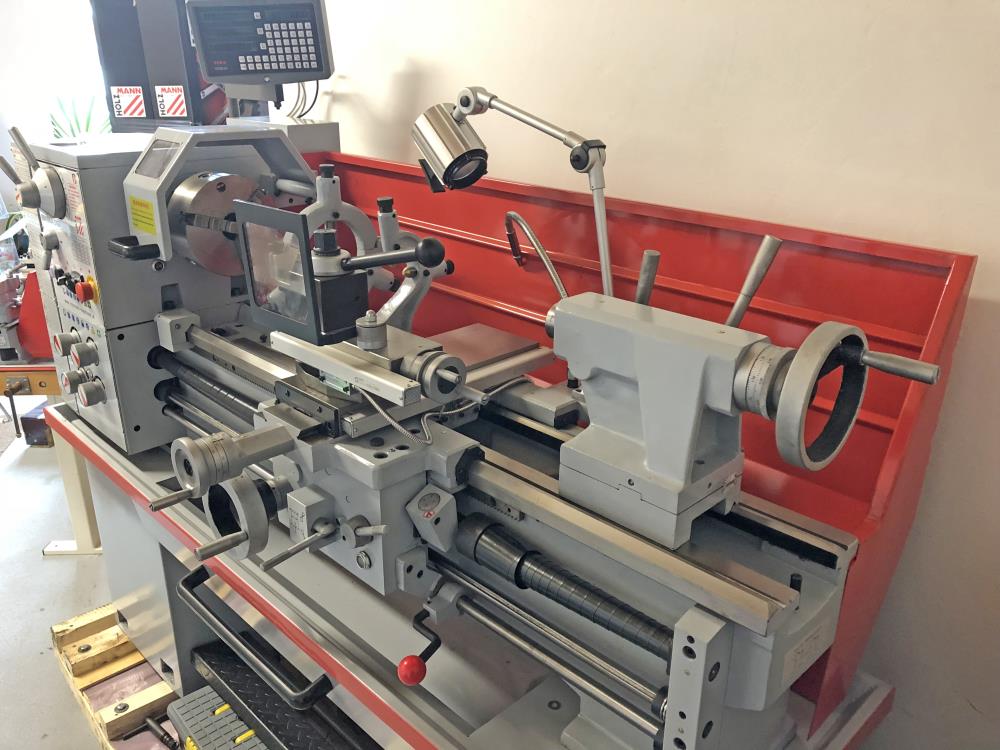

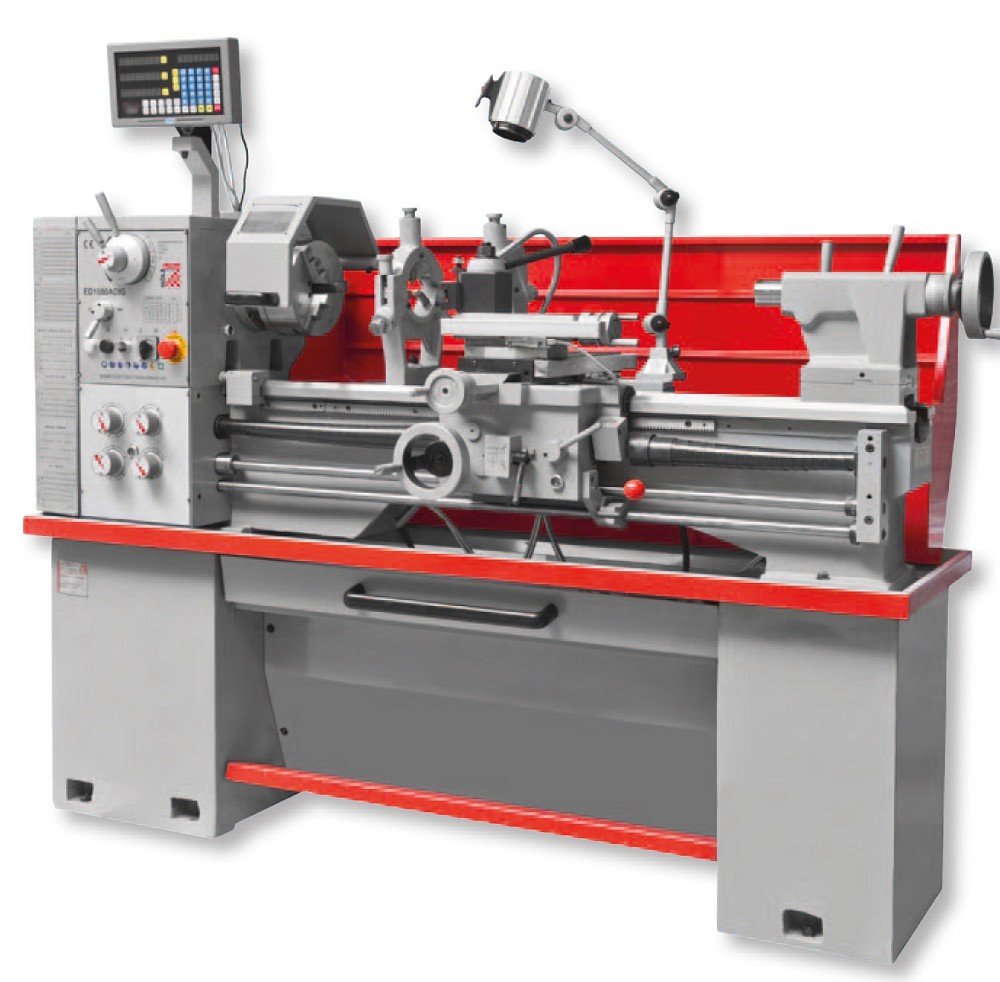

Product information "Holzmann metal turning lathe ED1080A DIG"
motor data
- motor power s1 in W 2,2 kW
- voltage 400V / 3 / 50Hz
turning machines
- tailstock cone MK/MT 4
- distance between centers in mm 1080
- center height in mm 200
- max. swing over bed in mm 400
- max. swing over cross slide in mm 250
- max. swing in gap in mm 520
- lathe spindle speed in min-1 65-1810
- spindle bore in mm 52
- spindle nose mount MK/MT6
- carriage travel in mm 1080
- cross slide travel in mm 1250
- compound slide travel in mm 210
- tailstock sleeve travel 115
- range of metric threads in mm/r 0,4-7
- range of inch threads 4-60 TPI
- max. tool holder cross-section 20x20 mm
- longitudinal feed 0,0527-1,2912 mm
- cross feed 0,011-0,276 mm
weight
- gross weight in kg 750
- net weight in kg 630
- 3-axis DRO mounted
- ideal for tool manufacturing, various productions or educational institutions

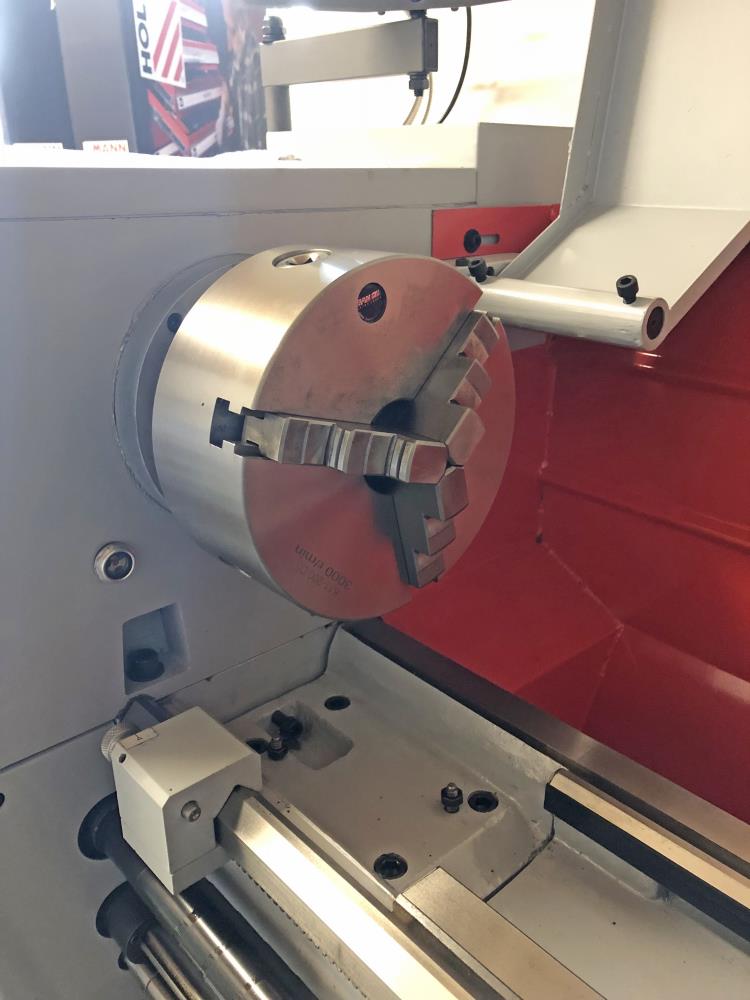

- exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
- foot brake ensures maximal working safety and cuts down nonproductive time
- induction-hardened and precision ground prismatic bed way guides made of
- stabilized cast iron, assuring max. accuracy for a lifetime
- removable bridge enables workpieces with diameters up to 520 mm

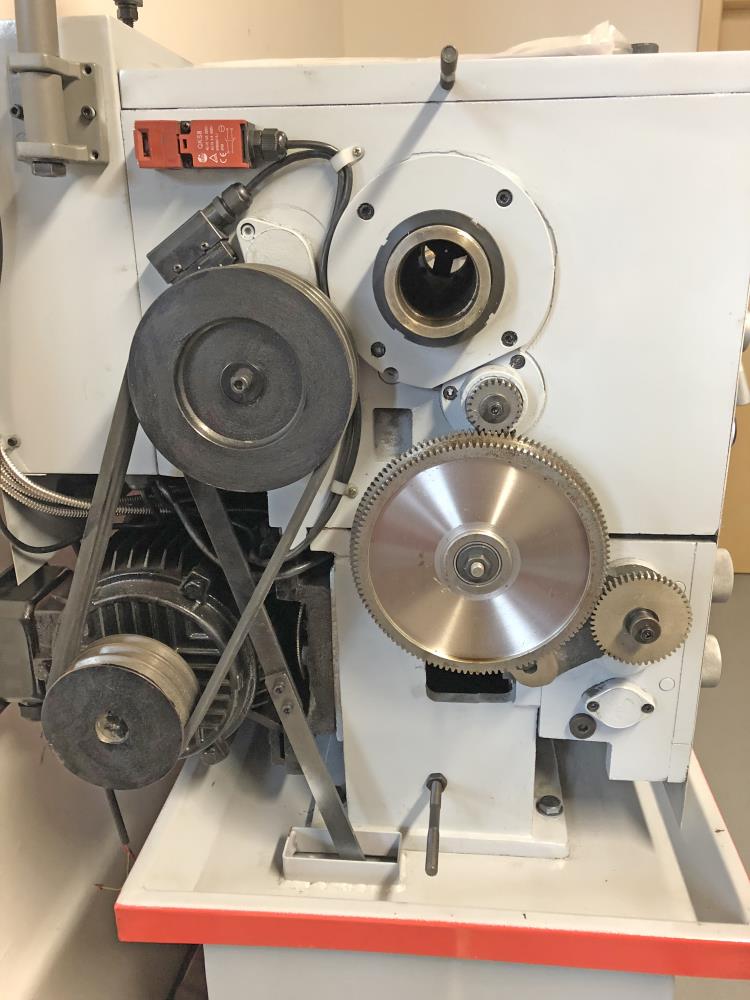

- Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
