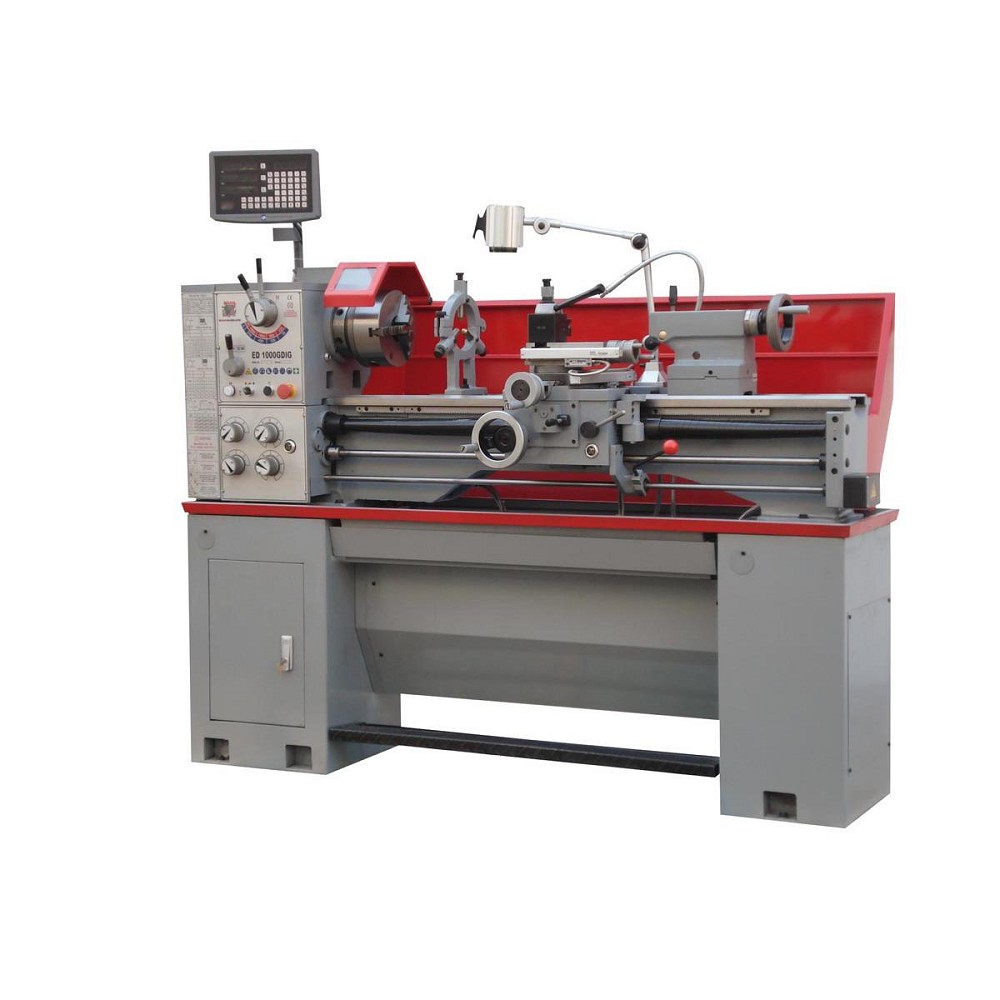

Holzmann metal turning lathe ED 1000G DIG

€6,299.00 * €6,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • ED1000G_DIG
distance between centers 1000mm center height 180mm swing over bed 360mm swing over cross slide... more
Product information "Holzmann metal turning lathe ED 1000G DIG"

distance between centers 1000mm
center height 180mm
swing over bed 360mm
swing over cross slide 198mm
swing over gap 470mm
bed width 187mm
bed height 305mm
spindle bore 52mm
spindle nose D1-5 DIN 55029
spindle nose taper MK6
speed range (8) 70-1900 rpm
carriage travel 810mm
cross slide travel 190mm
compound slide travel 88mm
cross feed (16) 0,022 - 0,298 mm/U
longitudinal feed (16) 0,078 - 1,044 mm/U
tailstock taper MK4
tailstock sleeve travel 120mm
quick change tool post max. opening 20x20mm
metric thread pitches (32) 0.45 - 10.0mm
imperial thread pitches (20) 2.25 - 40 TPI
motor power S1 (100%) / S6 1.5kW / 2.1kW
voltage 400V
dimensions LxWxH 1830x760x1330mm
packaging dimensions 1940x760x1520mm
gross weight approx. 680kg

3 axis DRO

with gear shaft
State of the art leadscrew and feed rod turning lathe excelling with especially long lasting value over time and
delighting versatility
ideal for use in sectors requiring versatility like maintenance and fabrication shops, tool rooms or for training purposes in schools
exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
electromagnetic foot brake ensures maximal working safety and cuts down nonproductive time dramatically
induction-hardened and precision ground prismatic bed way guides made of stabilized cast iron, assuring max. accuracy for a lifetime
removable bridge enables the machining of workpieces with diameters up to 474mm
Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
Gears and spindles are hardened, ground and running in an oil bath
Dynamically balanced main spindle mounted in precision bearings, high spindle centricity (< 0,009mm)
easy and quick speed change via gear shaft
Camlock D1-5 DIN 55029 spindle nose
adjustable (+/- 5mm) tailstock for taper turning
All guides conveniently adjustable via V-ledges
The tailstock can be adjusted +/- 5mm for taper turning.

Extensive delivery content: 3-jaw chuck Ø 200mm, 4-jaw independent chuck Ø 200mm, feed cover, face plate Ø 250mm, 2x dead centers MT4, morse taper sleeve MT 6/4, steady rest, follow rest, halogen work lamp, splash guard, cooling device, stand with spindle brake, exchange gear, tools
