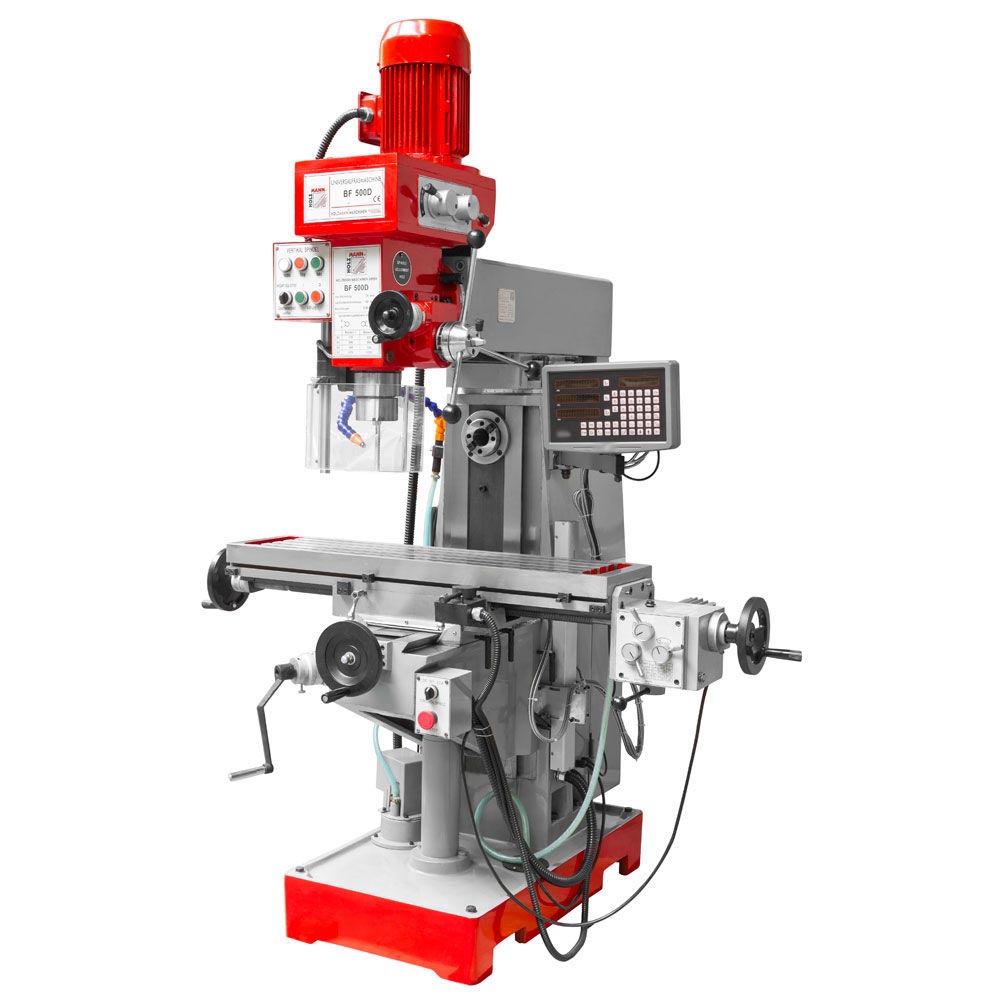

Holzmann milling machine BF 500D DRO

€8,099.00 * €8,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • BF500D_DRO
max. drilling capacity steel Ø50x125 mm spindle collet ISO40 spindle speed vertical(8 steps)... more
Product information "Holzmann milling machine BF 500D DRO"

max. drilling capacity steel Ø50x125 mm
spindle collet ISO40
spindle speed vertical(8 steps) 110-1760 rpm
spindle speed horizontal(9 steps) 60-1350 rpm
dimensions cross table 1000x240 mm
work table travel (x-axis) 400 mm
work table travel (y-axis) 230 mm
table stroke (z-axis) 130 mm
max. distance spindle to table 440 mm
max. distance spindle to table 190-740 mm
ISO 40 adapters B 18, MK3, MK2
milling head tilt +/- 90°
motor power 2-step motor vertical spindle S1 (100%)/S6 0,8 - 1,5 kW / 1,4 - 2,4 kW
motor power horizontal spindle S1 (100%)/S6 2,2kW / 3,3kW
voltage 400 V
net weight approx. 800 kg
gross weight 980 kg
packaging dimensions 2220x1100x1140mm


incl. 3 axis DRO

heavy and vibration absorbing cast iron machine
solid and pivotable (+90° -90°) vertical gear driven milling head
Oil bath gear with ground and hardened gear wheels
CW-CCW run as standard
quill downfeed via three spoke lever and precision wheel
with depth scale

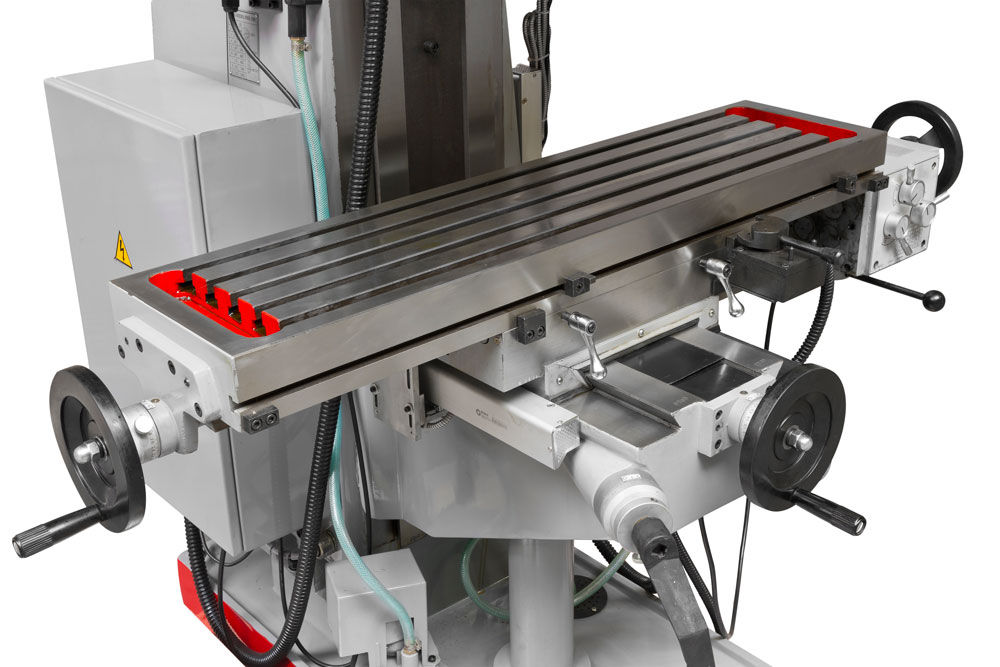

heavy and large cross table with 14mm T-nuts to fix e.g. a vice
automatic gear driven feeding of X-axis
automatic and adjustable limit stops of the X-axis.
swallowtail guides of the table adjustable via V-ledges
max. tapping size M16
cooling system and halogen lamp included in delivery
horizontal milling function
quick and easy transformation to horizontal function

included in delivery: cooling system, X-axis feed1pcs milling rod 22mm, 1pcs milling rod 27mm, chuck set 8pcs (4,5,6,8,10,14,12,16mm), chuck 1-16mm (B18), adapter 1xMT3 1xMT2 1xB18, professional vice with jaw width of 160mm, halogen lamp
