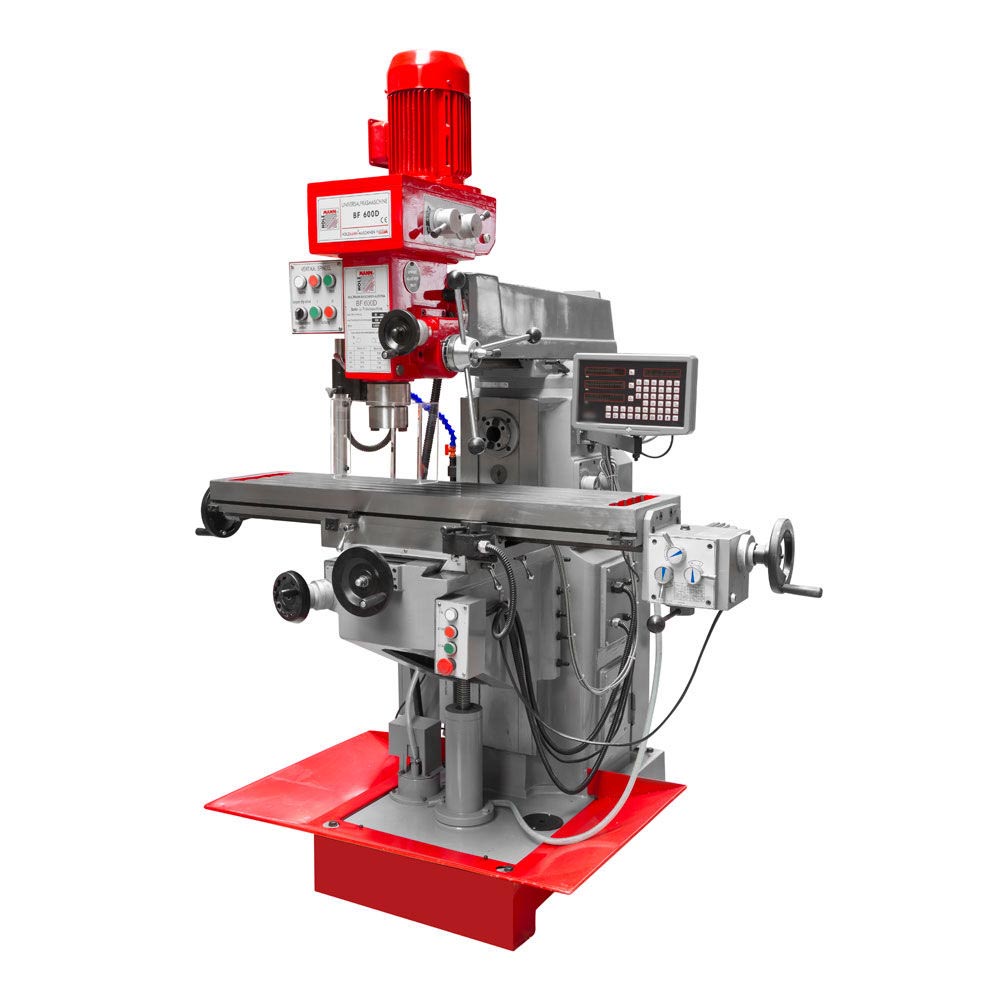

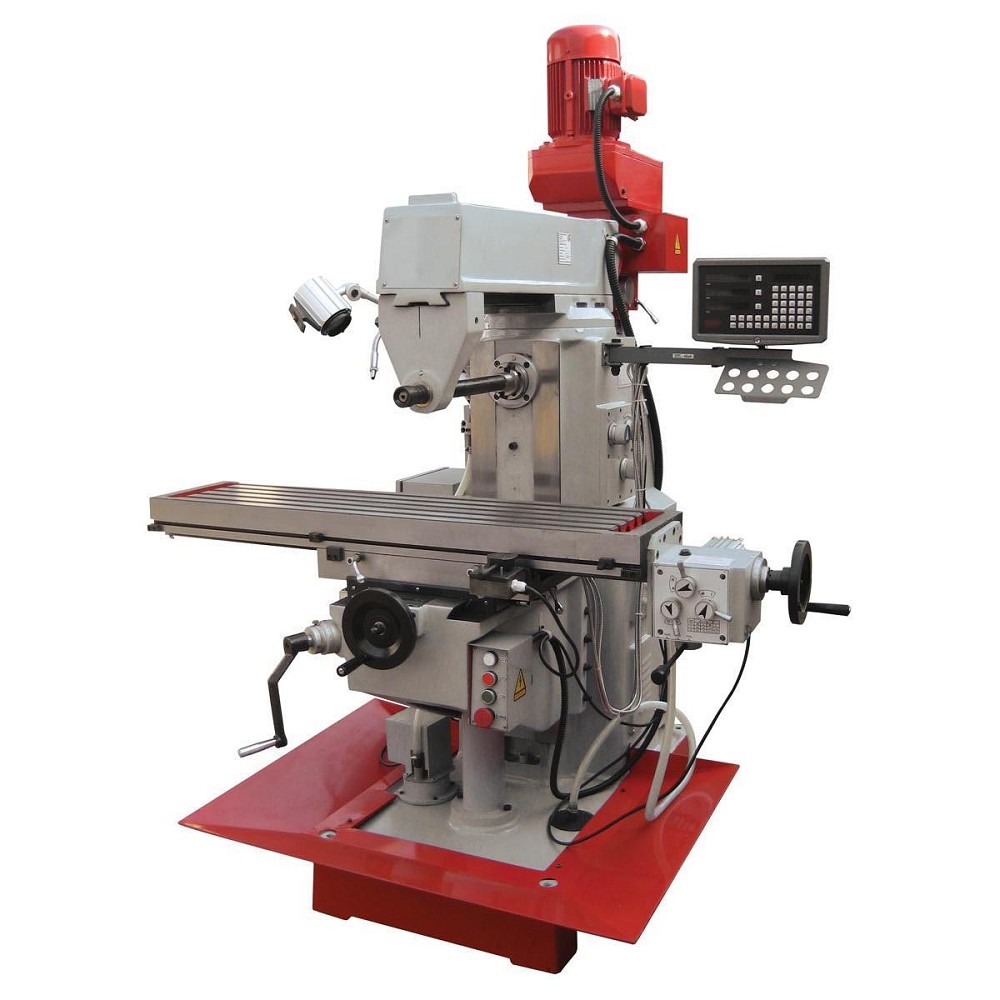

Holzmann milling machine BF 600D

€10,349.00 * €11,499.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • BF600D
drill sleeve stroke 120 mm spindle collet ISO40 spindle speed vertical(8 steps) 115-1750 rpm... more
Product information "Holzmann milling machine BF 600D"

drill sleeve stroke 120 mm
spindle collet ISO40
spindle speed vertical(8 steps) 115-1750 rpm
spindle speed horizontal(12 steps) 60-1355 rpm
dimensions cross table 1200x280 mm
work table travel (x-axis) 600 mm
work table travel (y-axis) 230 mm
table stroke (z-axis) 380 mm
max. distance spindle to table 460 mm
max. distance spindle to table 170-750 mm
ISO 40 adapters B 18, MT3, MT2
milling head tilt +/- 90°
max. end mill diameter 25mm
max. face mill diameter 100mm
table feeding speeds 22/30/55/75/124/313/430 m/min
motor power 2-step motor vertical spindle S1 (100%)/S6 0,9 - 1,5 kW / 1,4 - 2,4 kW
motor power horizontal spindle S1 (100%)/S6 2,2 kW / 3,3kW
voltage 400 V
net weight approx. 1180kg
gross weight 1220 kg
packaging dimensions 2220x1600x1460mm

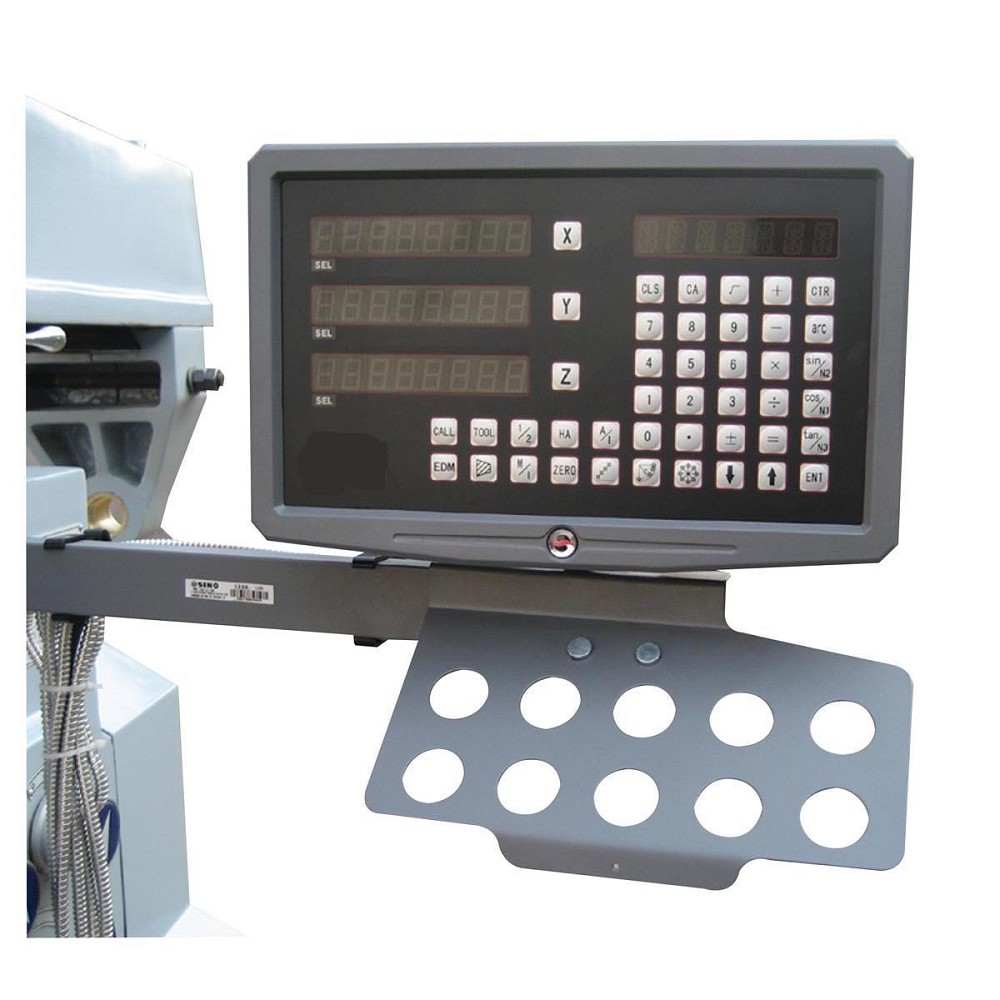

3 axis DRO included in delivery
automatic feeding for all axes
heavy duty cast iron setup of the whole machine
gear driven horizontal and vertical spindle
easy and quick transformation between vertical and horizontal operation
permanent oil bath lubricated gear with ground and hardened gear wheels
vertical spindle with powerful 2-step motor
cooling system and halogen lamp included
CW and CCW run as well as ISO 40 adapter as standard
swallowtail guides adjustable via V-ledge
solid and precise cross table (14mm T-nuts)

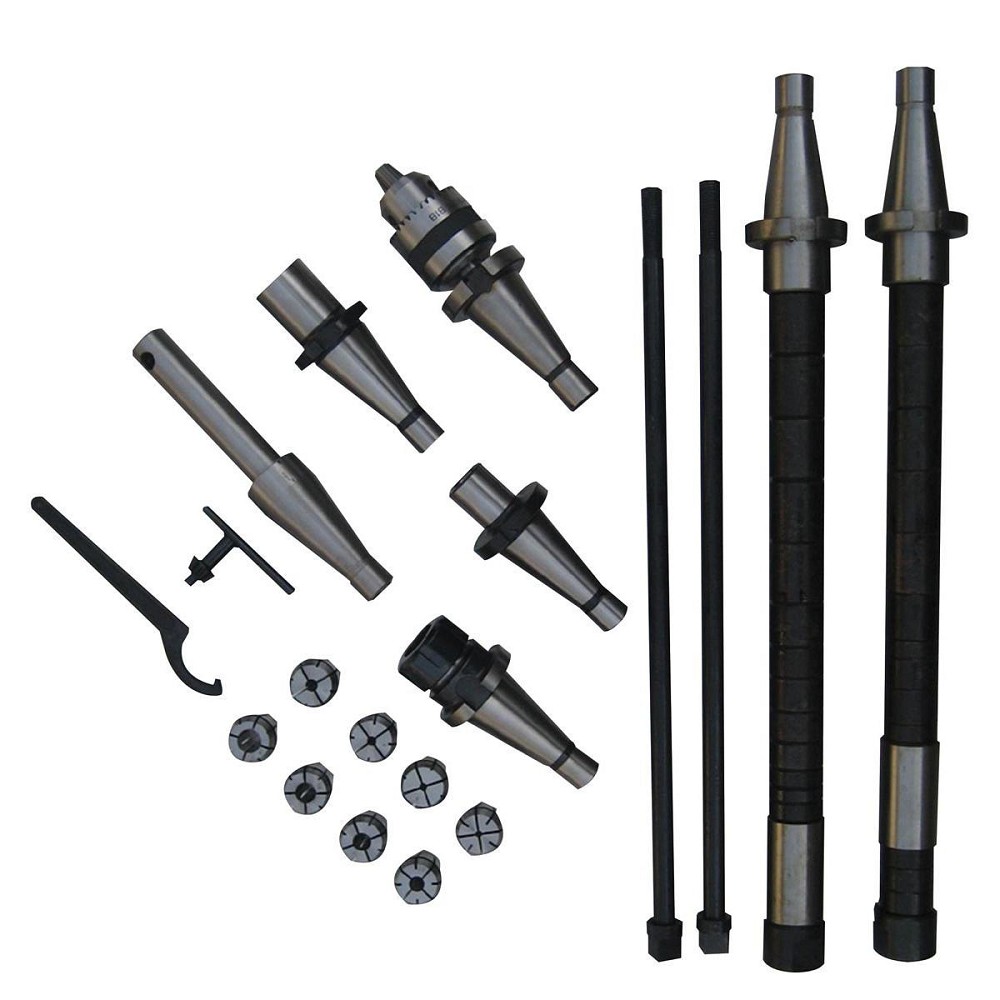

included in delivery: 3-axis DRO, X-axis feed, chuck 3-16mm/B16, 8pcs. milling chuck (4,5,6,8,10,12,14,16mm), adapters ISO 40-MK3, ISO 40-MK2, ISO 40-B18, 2xdraw bar M16, horizontal milling arbor 22 and 27mm, vice I160, cooling device, halogen lamp
