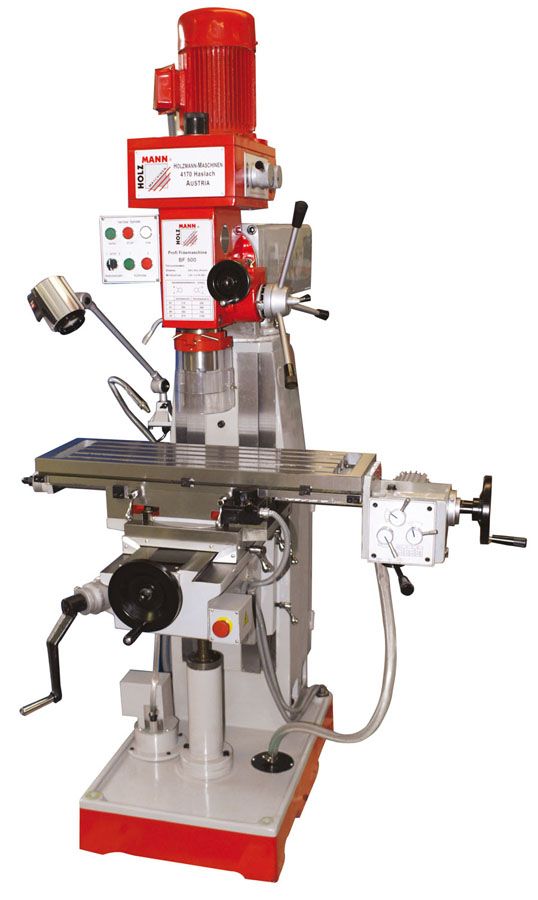

Holzmann milling machine BF 500

€6,749.00 * €7,499.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • BF500
max. drilling capacity steel Ø50x125 mm spindle collet ISO40 spindle speed (8 steps) 115-1760... more
Product information "Holzmann milling machine BF 500"

max. drilling capacity steel Ø50x125 mm
spindle collet ISO40
spindle speed (8 steps) 115-1760 rpm
dimensions cross table 1000x240 mm
work table travel (x-axis) 600 mm
work table travel (y-axis) 230 mm
table stroke (z-axis) 400 mm
max. distance spindle to table 440 mm
max. distance spindle to table 170-640 mm
ISO 40 adapters B 18, MT3, MT2
milling head tilt +/- 45°
motor power 2-step motor S1 (100%)/S6 0,8 - 1,5 kW / 1,4 - 2,4 kW
voltage 400 V
net weight approx. 800 kg
gross weight 980 kg
packaging dimensions 2220x1100x1140mm

heavy and vibration absorbing cast iron machine
solid and pivotable (+90° -90°) vertical gear driven milling head
Oil bath gear with ground and hardened gear wheels
CW-CCW run as standard
quill downfeed via three spoke lever and precision wheel
with depth scale
heavy and large cross table with 14mm T-nuts to fix e.g. a vice
automatic gear driven feeding of X-axis
automatic and adjustable limit stops of the X-axis.
swallowtail guides of the table adjustable via V-ledges
max. tapping size M16
cooling system and halogen lamp included in delivery

included in delivery: X-axis feed, cooling system, chuck set 8pcs (4,5,6,8,10,14,12,16mm), chuck 1-16mm (B18), 1x MT2 1xMT3 1xB18 adapter, professional vice jaw width 160mm, halogen lamp
