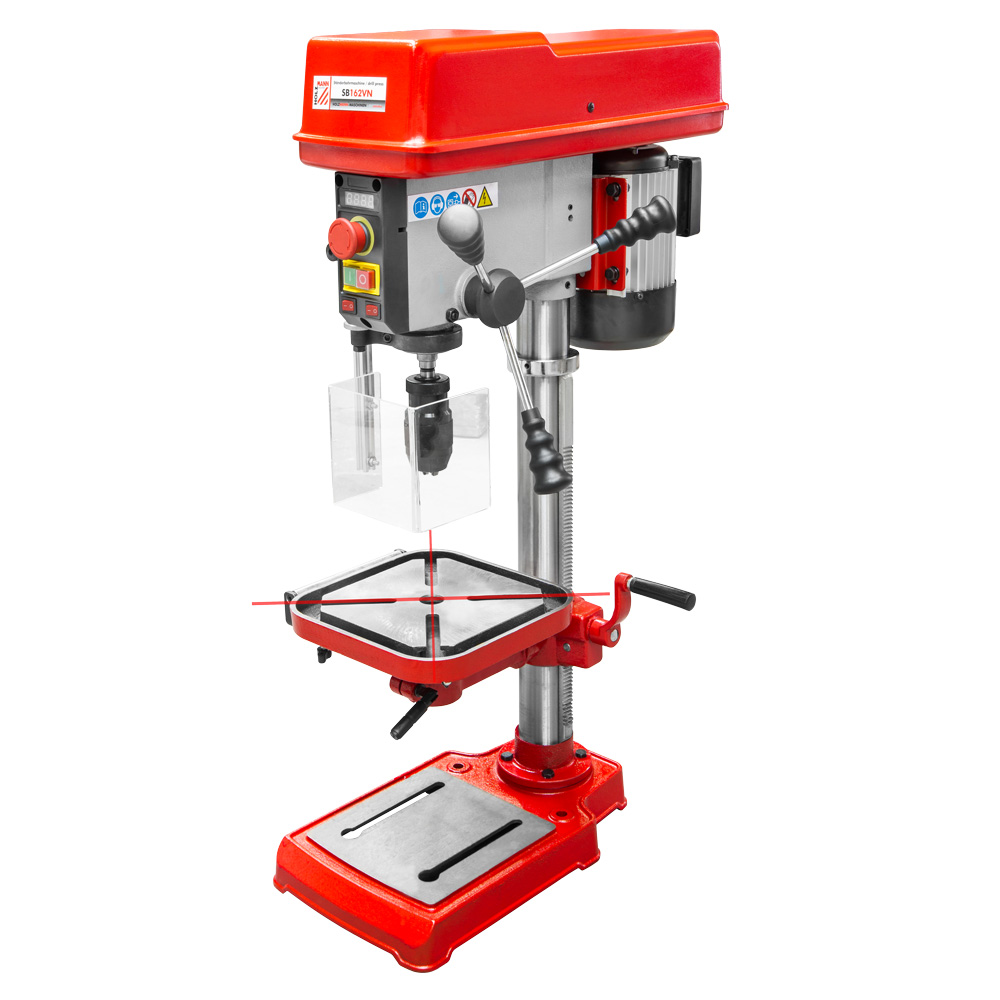

Holzmann drill press SB162VN

€359.00 * €449.00 * (20.04% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

  • SB162VN
  motor data voltage 230V /50 Hz speed in min-1 390-2200... more
Product information "Holzmann drill press SB162VN"



motor data
  • voltage 230V /50 Hz
  • speed in min-1 390-2200
  • protection class I
  • motor power s1 in W 500

measurements
  • outreach in mm 150
  • table size in mm 243x243
  • total dimensions in mm 310x570x910

drilling
  • max. drilling performance in mm 16
  • milling adapter MK2/MT2
  • column diameter in mm 60
  • spindle stroke in mm 90
  • base in mm 413x246
  • distance spindle-base in mm 540

volume level and vibration
  • sound power level in dB(A) 78
  • sound pressure level in dB(A) 59

weight
  • gross weight in kg 40
  • net weight in kg 38

packaging
  • packaging width in mm 498
  • packaging length in mm 762
  • packaging height in mm 280

general data
  • EAN code 9120058376566

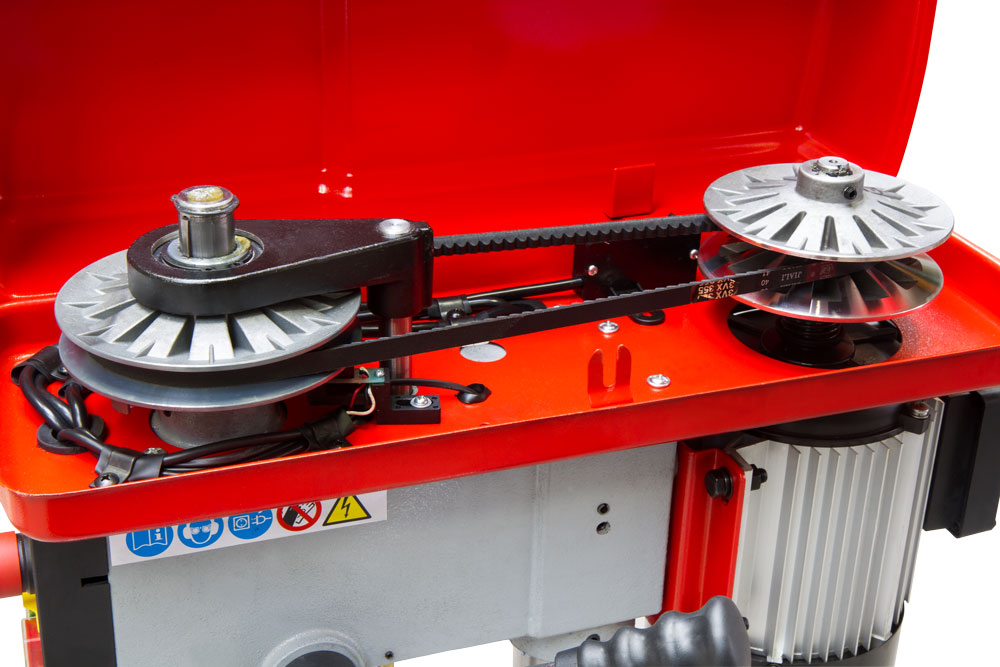

  • VARIO gear
  • incl. centering laser and working light

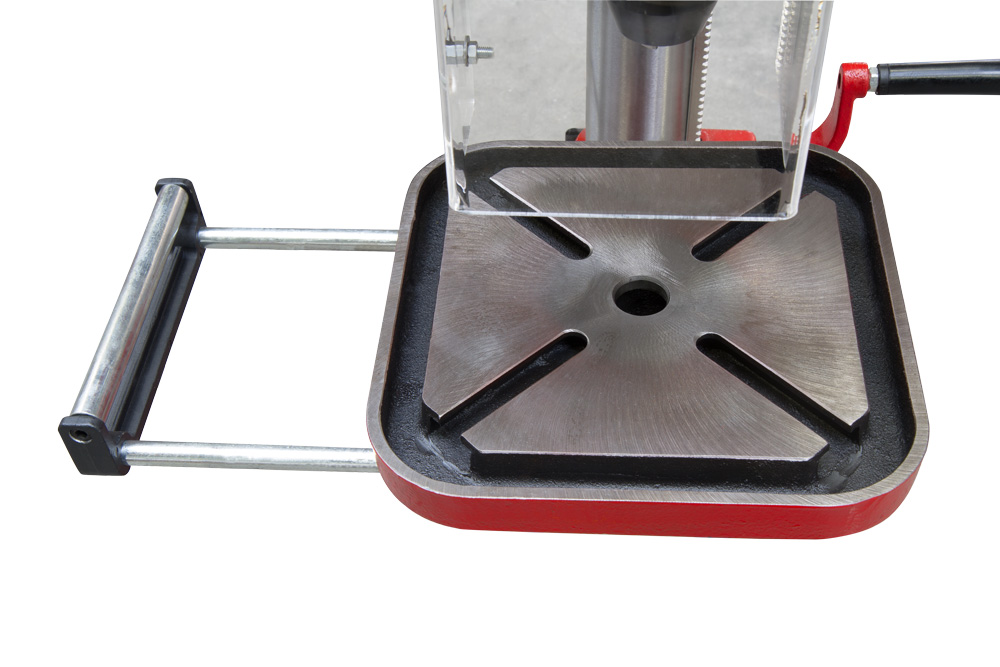

  • extendable work table
  • vario speed with LCD Display
  • features solid, polished base with T-nuts
  • aluminum motor according IP54
  • torsion-resistant, solid and polished steel column
  • the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
  • spindle protection cover
  • adjustable drill depth stop with scale for accurate drill depth control

included in delivery: automatic chuck 3-16mm, B16
