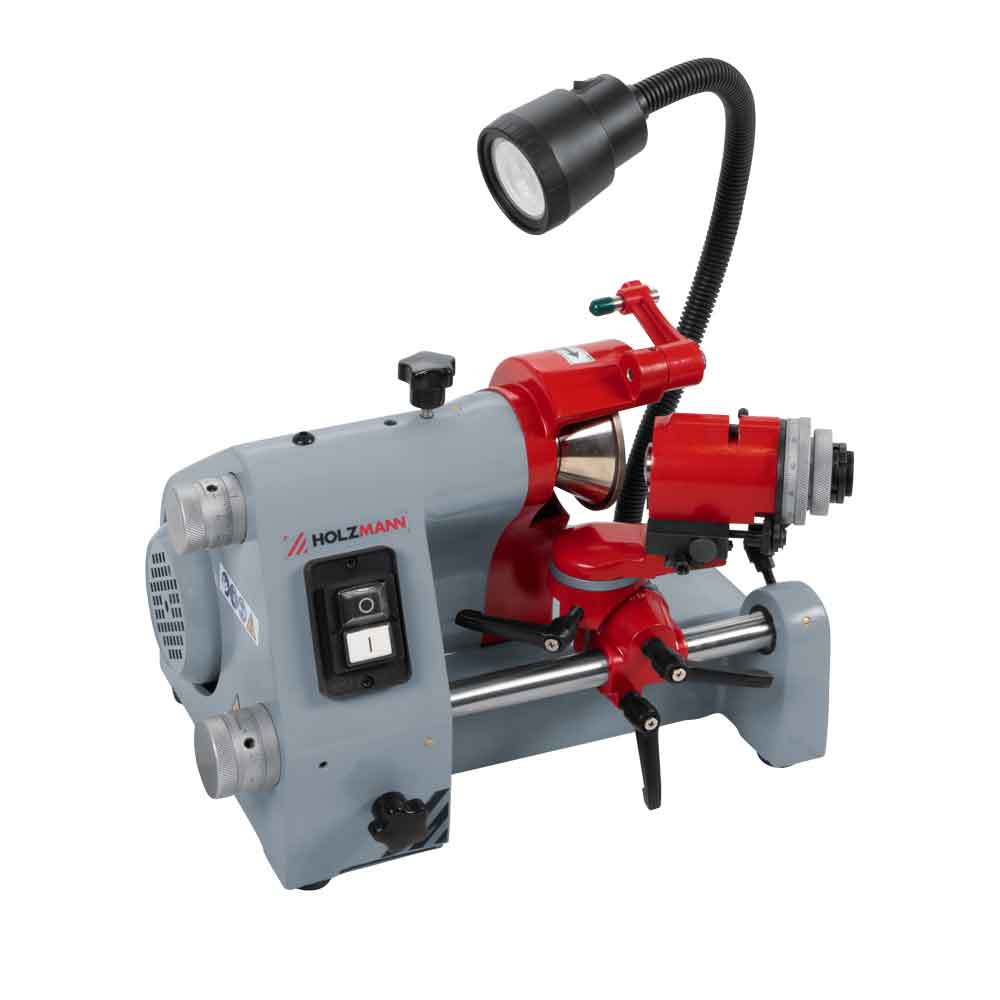

Holzmann universal tool grinding machine UWS 3
- Order number: UWS3
- Open text field 1: 9120039902616
- Open text field 2: 52
grinding wheel 100x50x20mm voltage 230V motor power 0,5HP chuck diameter min/max 3-16mm sanding... more
Product information "Holzmann universal tool grinding machine UWS 3"
grinding wheel 100x50x20mm
voltage 230V
motor power 0,5HP
chuck diameter min/max 3-16mm
sanding diameter 25mm
speed main spindle 5000rpm
taper grinding 0-180°
rear angle 0-45°
negative angle 0-25°
packing dimension 55x45x47cm
weight (NW/GW) 46/52kg
versatile applicable through various settings
for grinding punches, twist drills, electrodes, cutters, center points and so on
stable machine body and precise grinding spindles enable high precision and vibration-free run
handy operation

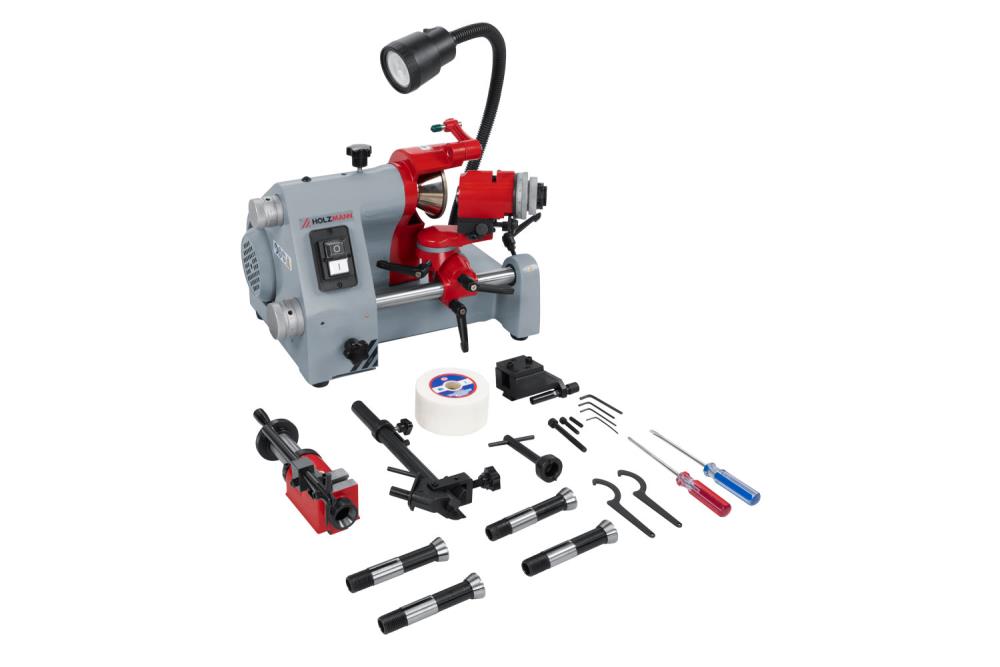

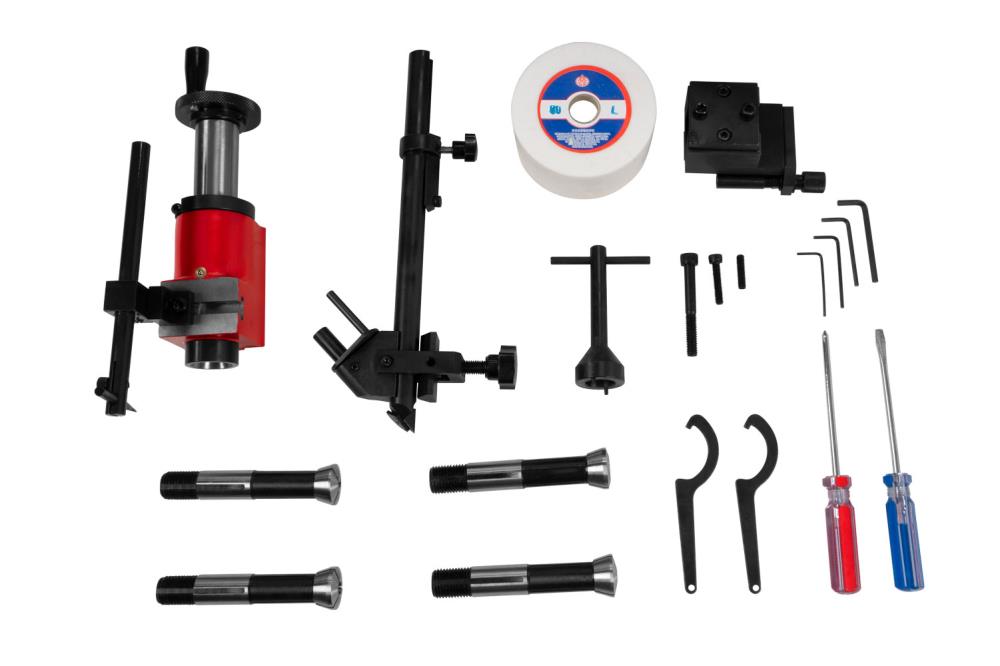

extensive accessories included in delivery: collets (4,6,8,10,12mm), twist drills adapter, end mill adapter, cutter adapter, corundum, diamond wheel, drive belt
