Holzmann universal tool grinding machine UWS 320

€3,194.00 * €3,549.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • UWS320
motor power S1 (100%) 0,18 kW voltage 400V net weight 250kg gross weight 265kg packaging... more
Product information "Holzmann universal tool grinding machine UWS 320"

motor power S1 (100%) 0,18 kW
voltage 400V
net weight 250kg
gross weight 265kg
packaging dimensions 900x1090x710mm

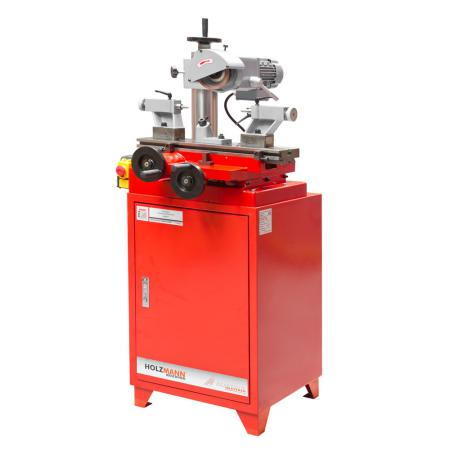

multi-purpose tool grinding machine for various tools like drills, mills, chisels, etc
solid and vibration minimizing machine setup ensures perfect grinding results
stand and tool cabinet included in delivery
large hand wheels allow an easy and accurate adjustment

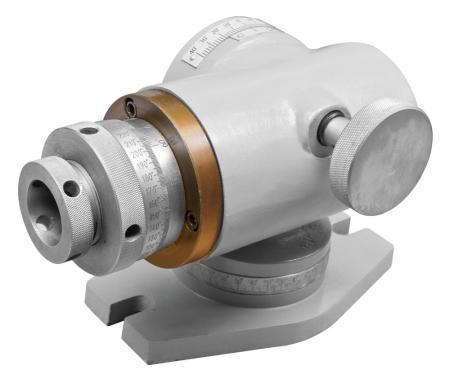

grinding head can be vertically tilted from +40° up to -40° and horizontally from +50° up to -50°

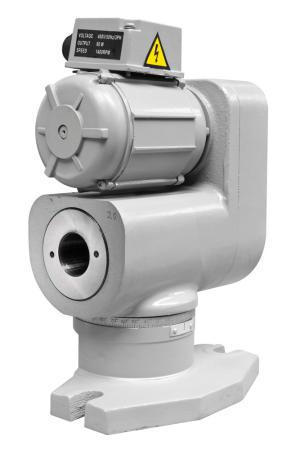

drive unit with 3-jaw chuck (DM80mm) can be used for cylindrical grinding works
max. grinding diameter 125mm, max. grinding length 320mm

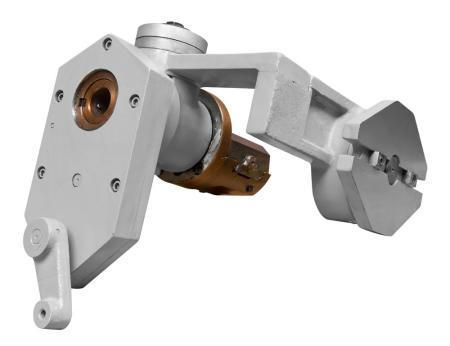

sharpening of twist drills from 5 - 32mm possible

included in delivery: stand, tailstock right and left, spring stop, variable talbe stops, drill grinding device, drive unit with 3-jaw chuck 80mm, cone point 60°, half cone point 60°, cap washer disc and diamond cap washer disc (125 x 35 x 32 mm), 1 plain sanding disc, 1 plate disc (125 x 15 x 32 mm), chisle holder, mills clamp arbor 16, 22, 32 mm, toolings
