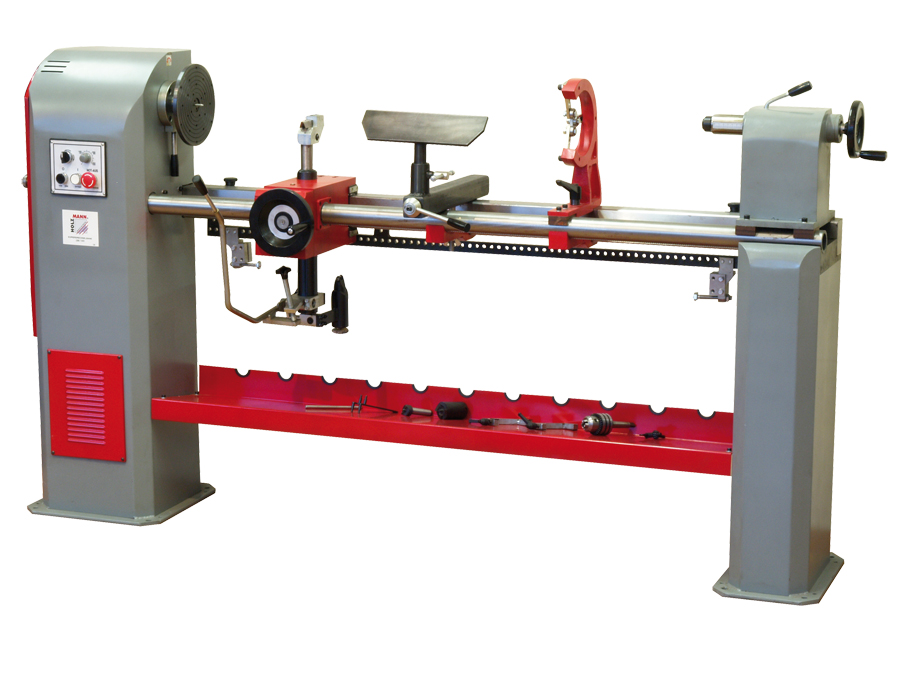

Holzmann wood turning lathe DBK1300

€2,069.00 * €2,299.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Spannung:

  • DBK1300_230V
  motor data voltage 230V or 400V motor power s1 in W 1100 motor power... more
Product information "Holzmann wood turning lathe DBK1300"

motor data
  • voltage 230V or 400V
  • motor power s1 in W 1100
  • motor power s6 in W 1500
turning machines
  • tailstock sleeve travel 100
  • copying center height in mm 65
  • max. copy depth in mm 50
  • max. copy length in mm 1100
  • distance between centers in mm 1300
  • center height in mm 220
  • lathe spindle speed in min-1 2800/1950/1000/500
  • tailstock cone MK2/MT2
  • head stock spindle M33
weight
  • gross weight in kg 228
  • net weight in kg 202
packaging
  • packaging length in mm 2.120
  • packaging width in mm 490
  • packaging height in mm 1.230
general data
  • EAN code 9120039901992 (400V)
  • EAN Code 9120039907475 (230V)

  • solid and torsion-resistant steel build-up
  • easy one hand operation with eccentric clamp system
  • solid tail stock with double guide system
  • tailstock with M33 and MT2
  • long tool rest with quick clamp system and stepless height adjustment
  • various accessories included in delivery

included in delivery: face plate 220mm, screw chuck, grab chuck 40mm, drill chuck 3-16mm, arbor B16-MT2, life centre MT2, tool rest, steady rest, copying device
