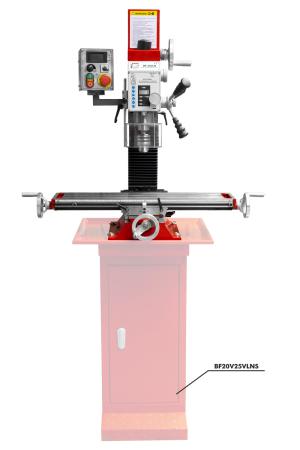

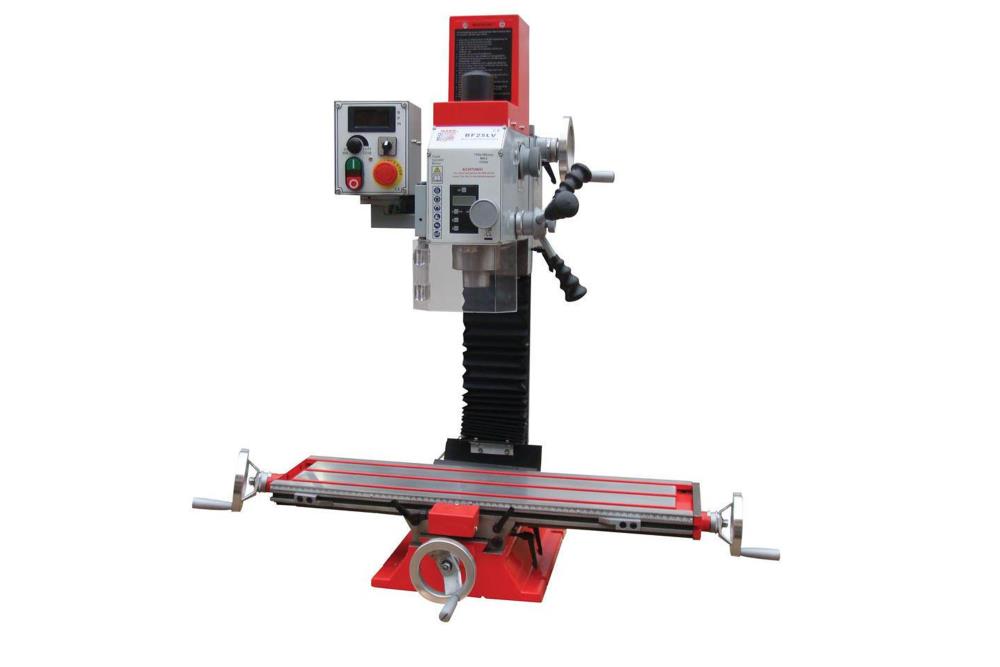

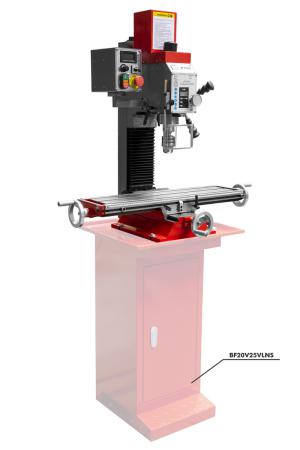

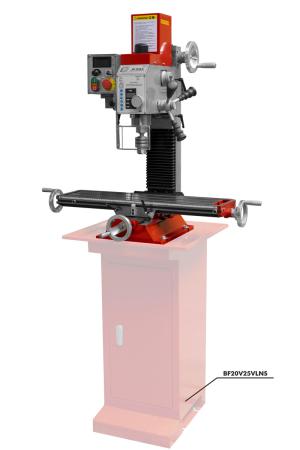

Holzmann milling machine BF 25VLN

€1,829.00 * €2,299.00 * (20.44% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 3-5 workdays

  • BF25VLN
max. drilling capacity steel Ø16x50 mm spindle speed 50-2250 rpm dimensions cross table 700x180... more
Product information "Holzmann milling machine BF 25VLN"

max. drilling capacity steel Ø16x50 mm
spindle speed 50-2250 rpm
dimensions cross table 700x180 mm
work table travel (x-axis) 480 mm
work table travel (y-axis) 175 mm
table stroke (z-axis) 380 mm
max. distance spindle to table 335 mm
max. distance spindle to table 200 mm
ISO 40 adapters MT3
mill head tilt range +90° / -90°
max. end mill diameter 25mm
max. face mill diameter 63mm
T-nut size 12mm
max. table loading 55kg
motor power 2 step motor S1 (100%) / S6 0,7kW / 1kW
voltage 230 V
net weight approx. 133 kg
gross weight 140 kg
packaging dimensions 860x870x550mm


XL-cross table (700x180mm)
variable speed control with DRO
DRO for drill depth indication as standard
CW and CCW run
dovetail guided cross table and gear, adjustable via gibs
rotateable gear head enlarges use of application
three spoke hand lever for milling operation
three lever wheel for drilling operation
high quality cross table with scale and adjustable end stops
ideal machine for schools, precision mechanic and DIY users
the product counts to electric filter class B and has to be EMV protected if used in urban areas

included in delivery: drill chuck MK3/B16, speed DRO, drill depth DRO, draw bar M12, toolings
