Buy Holzmann edge banding machine KAM215EPSV cheaper at Holzmann Machine Store

€14,399.00 * €15,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

Order number: KAM215EPSV

motor data voltage 400V / 50Hz feed speed 13 m/min ... more

Close menu

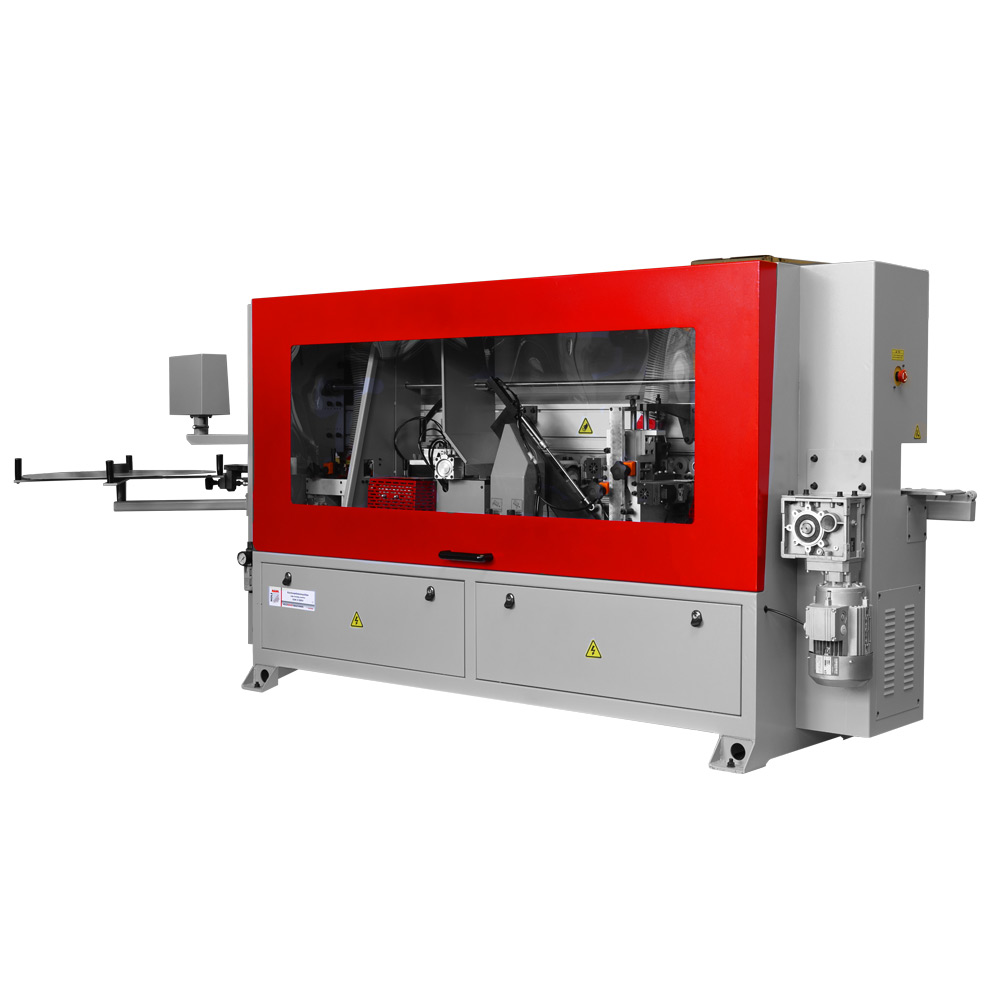

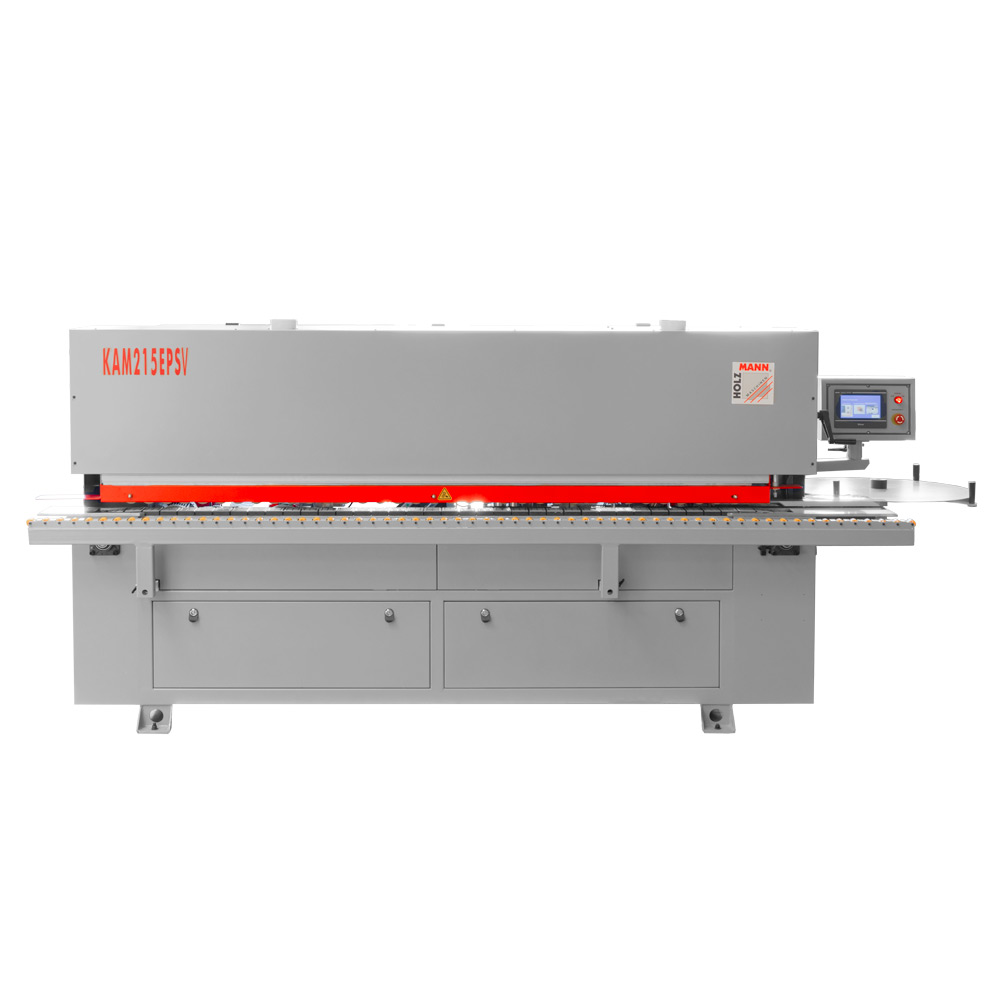

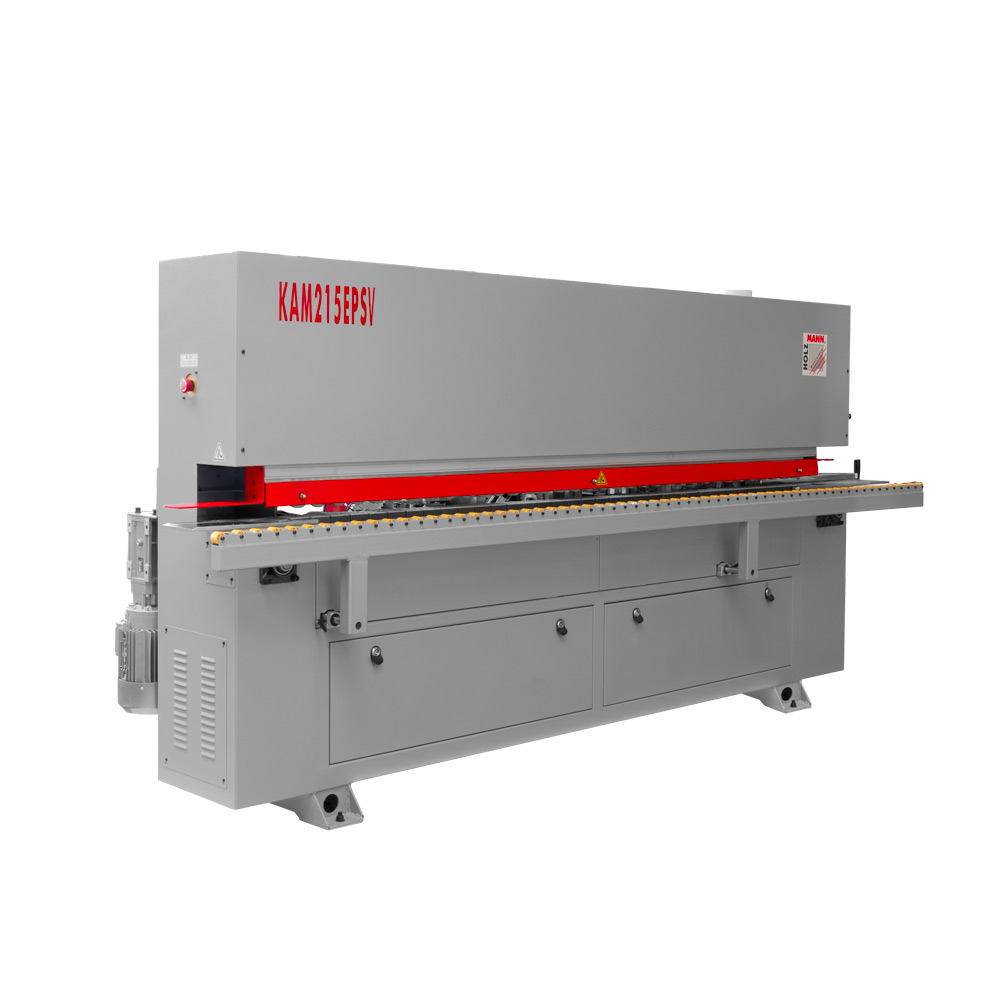

Product information "Holzmann edge banding machine KAM215EPSV with pre-milling unit"

motor data

voltage 400V / 50Hz
feed speed 13 m/min

measurements

suction port in mm 2x ø 100
total dimensions in mm 3570 x 1100 x 1500

workpiece measurements

min. workpiece length in mm 120
min. workpiece width in mm 80
min. workpiece thickness in mm 10
max. workpiece thickness in mm 50

edge banding

edge width in mm 15-55
edge thickness in mm 0,4-3
required air pressure in bar 6

weight

gross weight in kg 1.050
net weight in kg 900

packaging

packaging width in mm 760
packaging length in mm 3.160
packaging height in mm 1.500

general data

EAN code 9120058378072

The established KAM215EPS is extended by a pre-milling unit

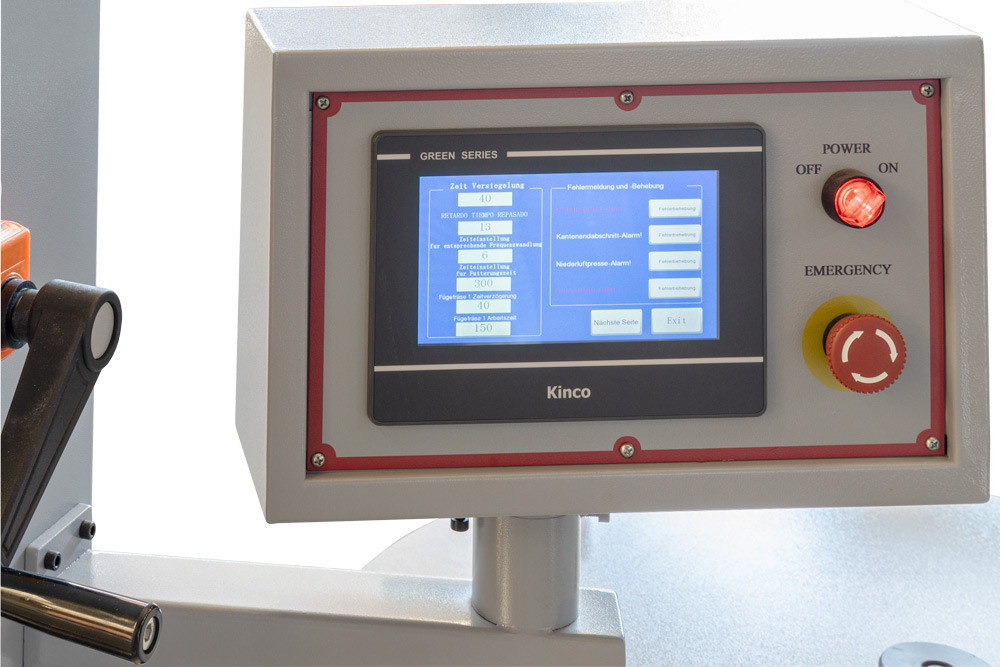

touchscreen display

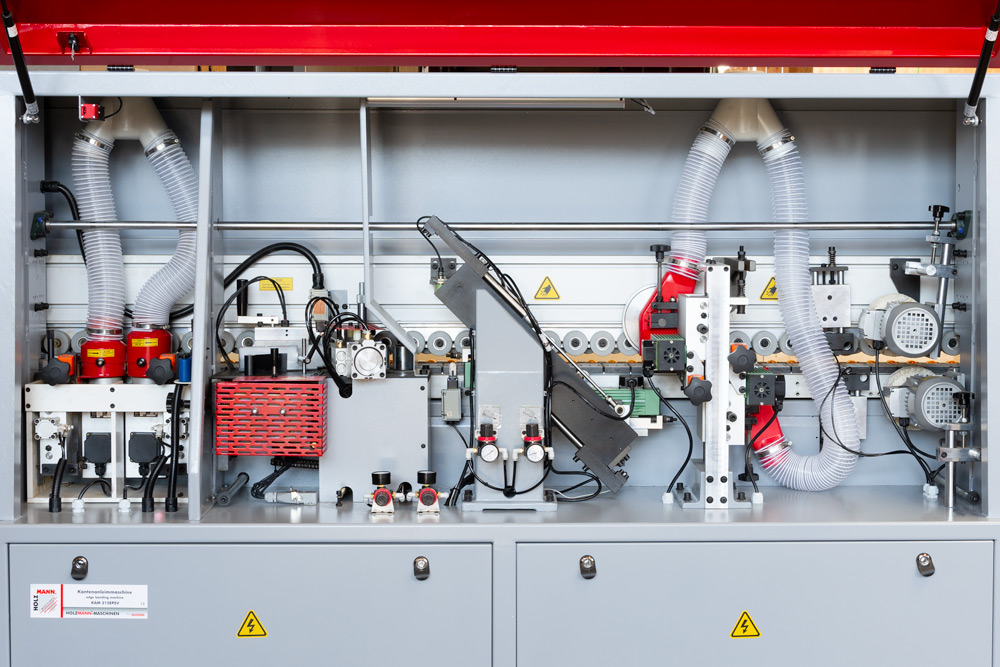

one-sided automatic edge banding machine with
- pre-milling unit (double cutter left/right rotation) with ø80 mm cutter equipped; 1,1kW motor per unit and 12000min-1 cutter speed
- glue tank with heating control and direct glue delivery to straight workpieces
- crosscut saw unit for cutting the edge band (one unit each for front and rear side) 0,35kW motor per unit and 12000min-1 (saw blade speed)
- double trimming unit for trimming the edge overhang on the workpiece (top/bottom) with form cutter straight or with radius 2 mm; 0,75KW motor per unit and 18000min-1
- straight scraper unit (top/bottom side)
- polishing unit (top/bottom) 0,18 kW per unit and 1400min-1
pressure rollers ensure an ideal connection between laminate and workpiece
automatic and constant panel feed thanks to chain conveyor drive and powerful motor.
gluing temperature can be set electronically on the touch display
edge band support table

Included in delivery: 2x pre-milling cutters (ø80xø20x55 mm), 2x saw blades (ø104xø22x3/2.2 30T), 2x polishing disc (ø150mm), 2x blades, 2x cutters for double milling unit
