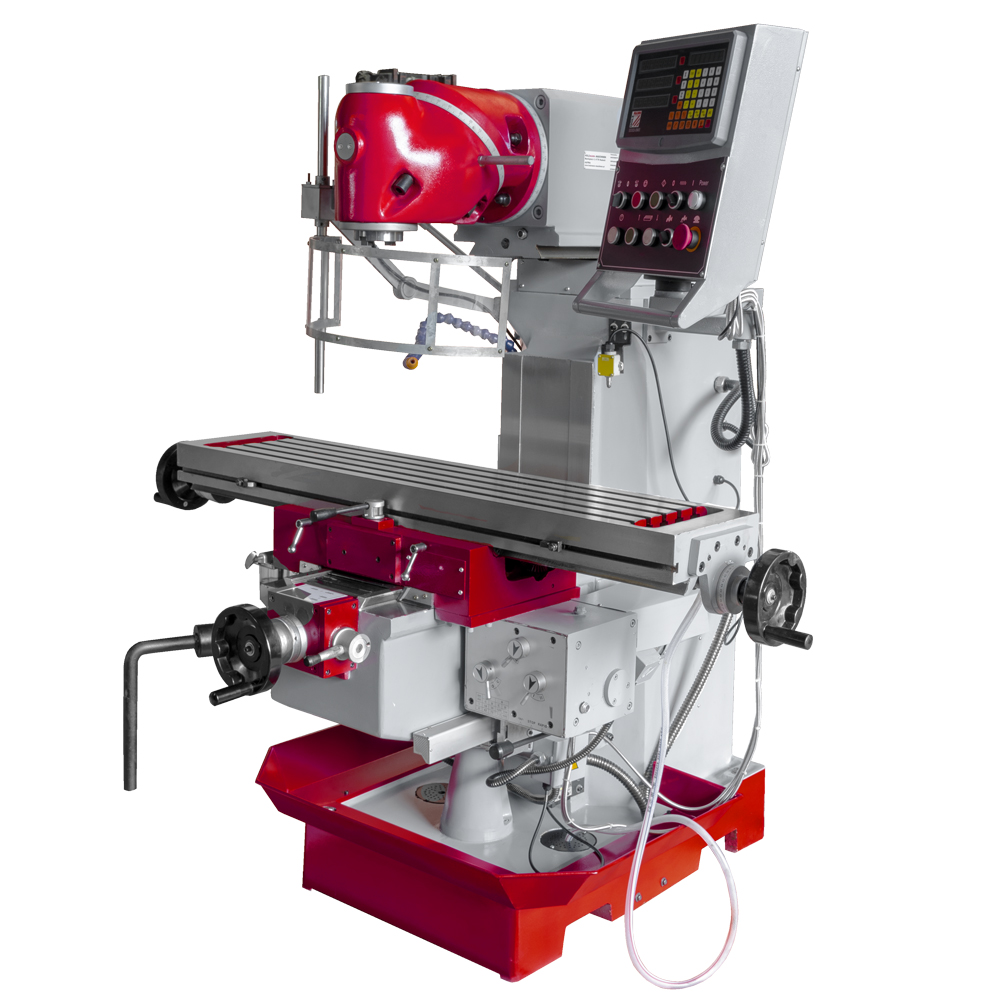

Holzmann milling machine BF 700

€12,599.00 * €13,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • BF700
voltage 400V / 3 / 50 Hzengine power 2,2 kWspindle collet ISO 40Spindle speed vertcal 40-1600 /... more
Product information "Holzmann milling machine BF 700"

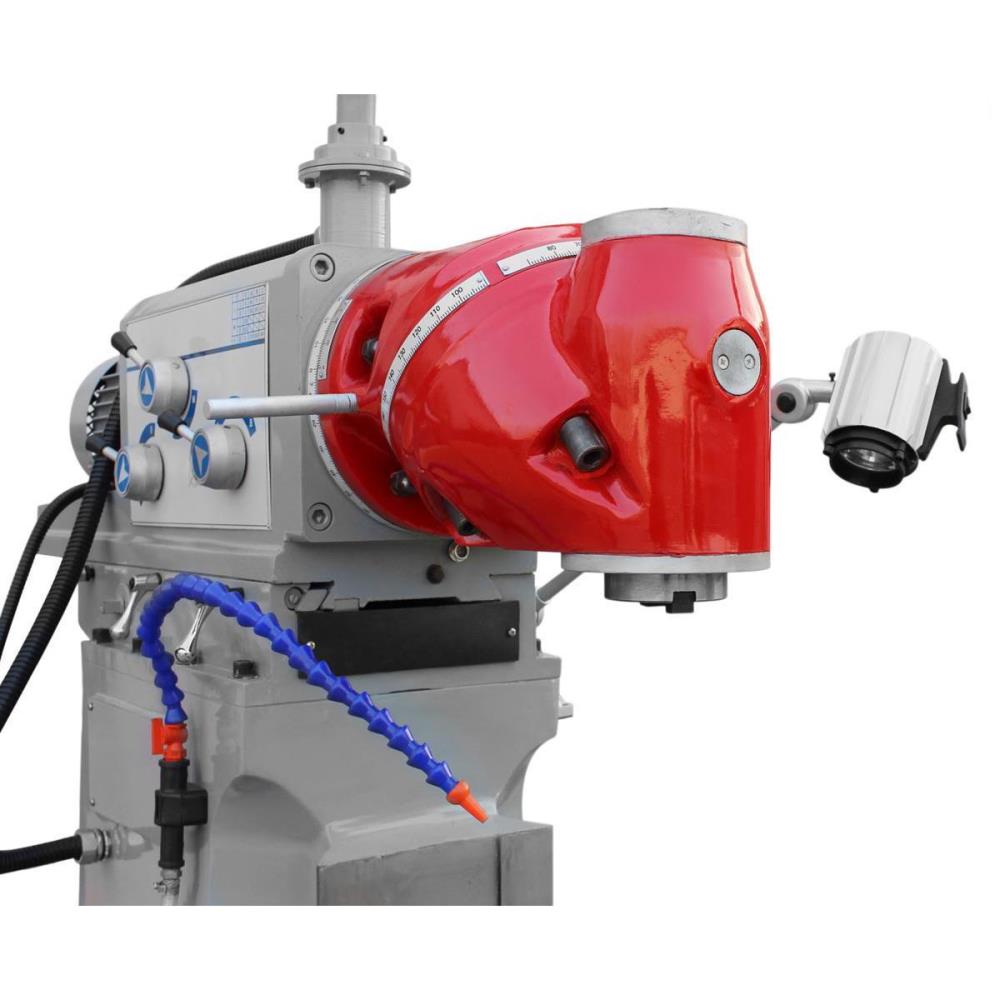

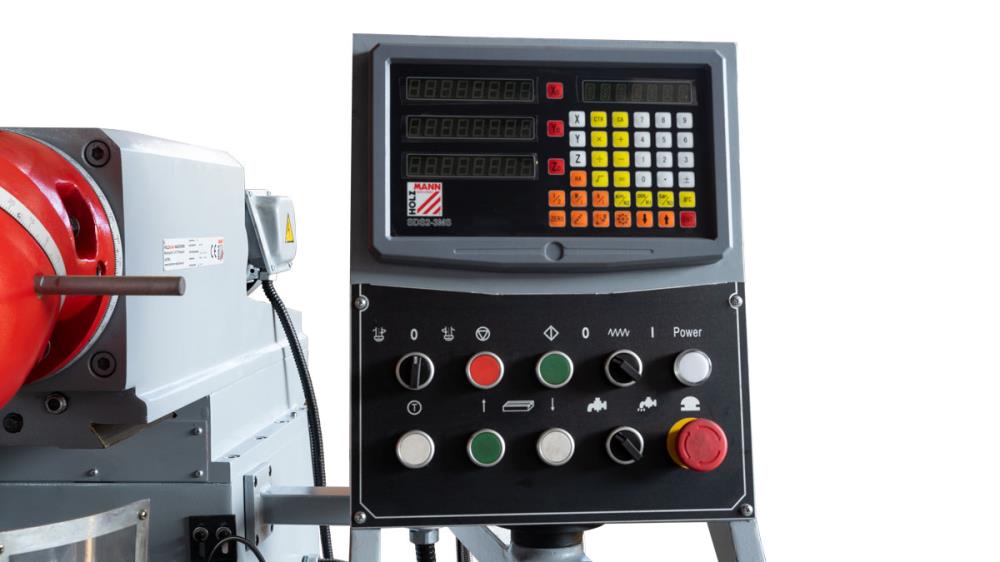

voltage 400V / 3 / 50 Hzengine power 2,2 kWspindle collet ISO 40Spindle speed vertcal 40-1600 / 11 stepstable size 1270 x 260 mmmax. load of table 250 kgwork table travel (y-axis) 230 mmdistance spindle to table 60-500 mmmax. distance spindle to table 100-480 mmmax. milling width 125 mmmax. milling diameter 25 mmangle of the swivel head 360°feed speed x/y 18-480 mm/min 8 stepsposition speed z 422 mm/minmachine dimensions 1660 x 1500 x 1730 mmnet weight 1500 kggross weight 1650 kg In all angular positions adjustable universal milling head Pivotable control panel with digital readout for X / Y / Z axis Heavy and vibration absorbing cast iron machine frame Dovetail finely adjustable by gibs Oil bath gear with hardened and polished gears Automatic table feed of the X / Y-axis as standard Position motor for Z-axis as standard Massive and precise cross table with 5 T-slots (14mm) Coolant circuit and halogen lamp as standardincluded in delivery:Mill chuck set, colett-set, coolant circuit, halogen lamp, milling arbor (ISO 40/ Ø 32), various tools
