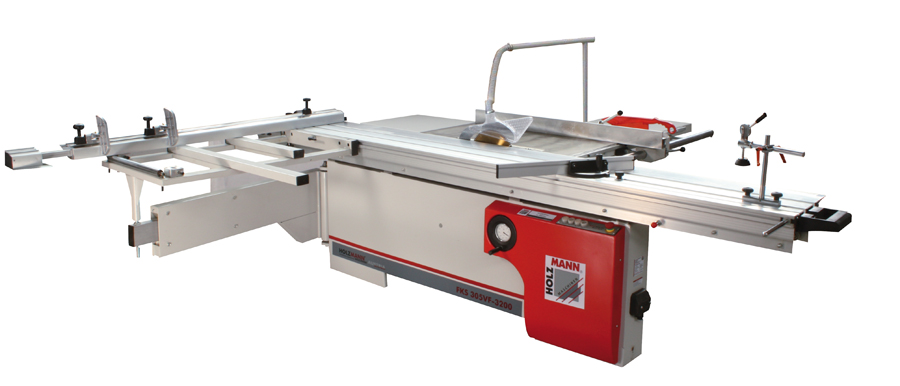

Holzmann panel saw FKS 305VF-2600

€4,949.00 * €5,499.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • FKS305VF_-_2600
motor data motor power s1 in W 4000 motor power s6 in W 5600 voltage 400V... more
Product information "Holzmann panel saw FKS 305VF-2600"
motor data
  • motor power s1 in W 4000
  • motor power s6 in W 5600
  • voltage 400V

measurements
  • outrigger table in mm 1110x610
  • sliding table in mm 2600x375
  • suction port in mm 100
  • table height in mm 850
  • table extension in mm 500x505 / 790x505
  • table size in mm 980x550

cutting performance
  • max. cutting width at parallel fence in mm 1150
  • max. cutting height 45° in mm 55
  • max. trimming in mm 2600
  • max. cutting height 90° in mm 80
  • scoring unit motor power in W 750/1050

circular saws
  • sawblade speed in min-1 4500/5500
  • scoring sawblade in mm Ø120
  • sawblade in mm 305
  • scoring unit speed in min-1 8000
  • sawblade swivel 0°-45°

weight
  • gross weight in kg 780
  • net weight in kg 720

packaging
  • packaging length in mm 2.250
  • packaging width in mm 1.070
  • packaging height in mm 980

general data
  • EAN code 9120039909318




  • Perfect for cutting heavy, large work pieces.
  • massive profi alu sliding table and extra long outrigger enables to handle big workpieces -
  • perfect for cutting heavy large boards and plates
  • equiped scoring unit powered by a separate motor
  • compact control panel located at machine frontside for operation convenience
  • smoothly running saw blade height and angle adjustment via hand wheel
  • analog read out of saw blade adjustment (height and tilt)
  • two different cutting speeds as standard
  • high quality and stable machine body
  • table extensions enable convenient working conditions

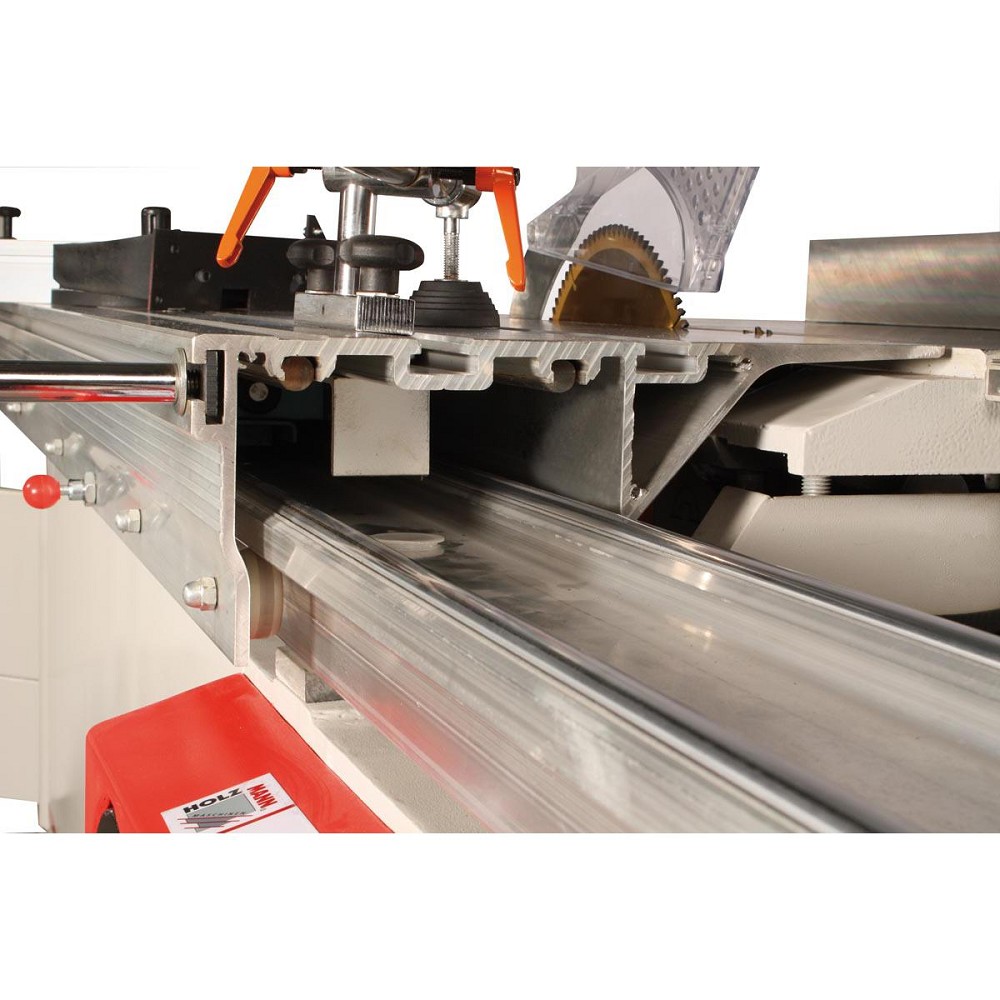

  • double roller carriage aluminium sliding table with
  • hardened steel guides,
  • results in smooth running and highest precision
  • heavy machine with massive, rugged but precise
  • construction for max. cutting accuracy
  • very accurate and solid rip fence with fine adjustment function
  • extractable and solid mitre fence (1600-3150) at outrigger table incl. 2 end stops
  • max. cutting width at parallel fence 1150mm
