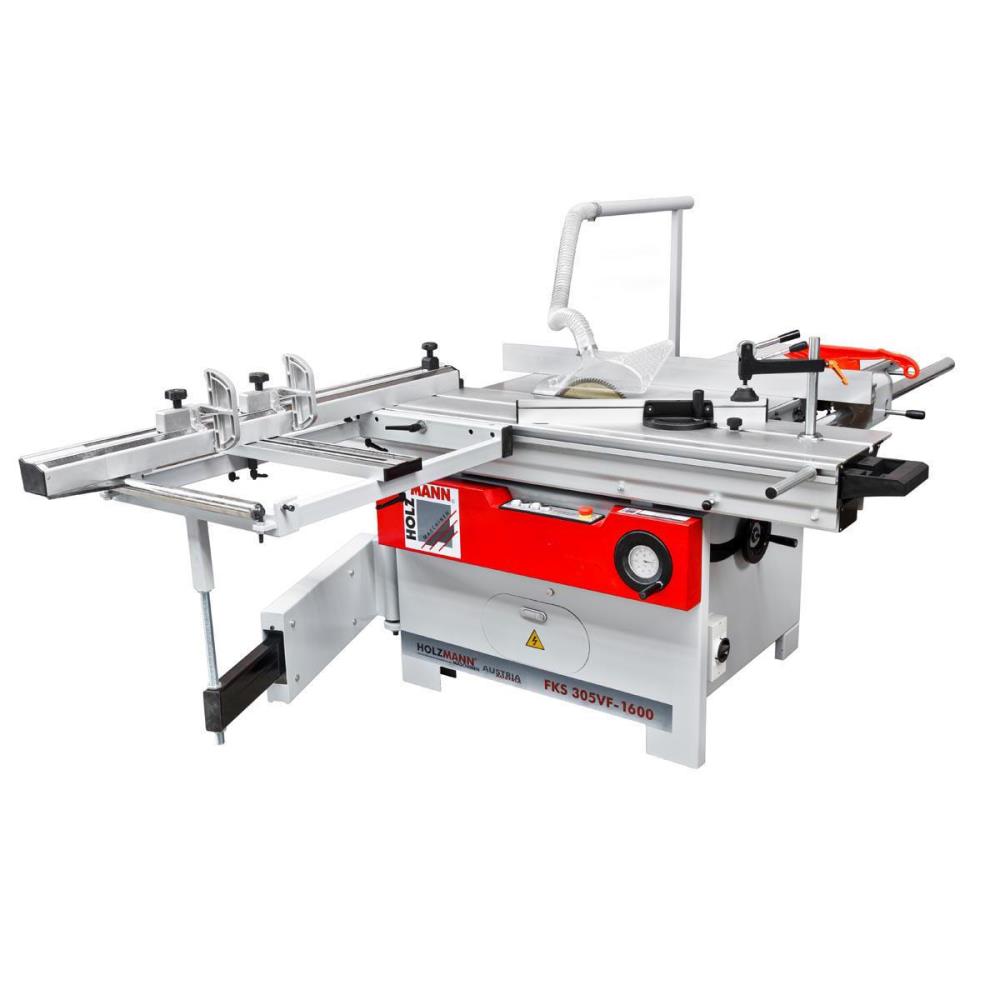

Holzmann panel saw FKS 305VF-1600
- Order number: FKS305VF_-_1600
motor data motor power s1 in W 3000 motor power s6 in W 4200 voltage 400V... more
Product information "Holzmann panel saw FKS 305VF-1600"
motor data
- motor power s1 in W 3000
- motor power s6 in W 4200
- voltage 400V
measurements
- sliding table in mm 1600x375
- suction port in mm 100
- table height in mm 840
- table extension in mm 600x450
- table size in mm 900x570
cutting performance
- max. cutting width at parallel fence in mm 1150
- max. cutting height 45° in mm 50
- max. trimming in mm 1600
- max. cutting height 90° in mm 70
- scoring unit motor power in W 750/1050
circular saws
- sawblade speed in min-1 4500/5500
- scoring sawblade in mm Ø120
- sawblade in mm 305
- scoring unit speed in min-1 8300
- sawblade swivel 0°-45°
weight
- gross weight in kg 500
- net weight in kg 440
packaging
- packaging length in mm 1.130
- packaging width in mm 1.070
- packaging height in mm 980
general data
- EAN code 9120039909301
- massive profi alu sliding table and extra long outrigger enables to handle big workpieces
- perfect for cutting heavy large boards and plates

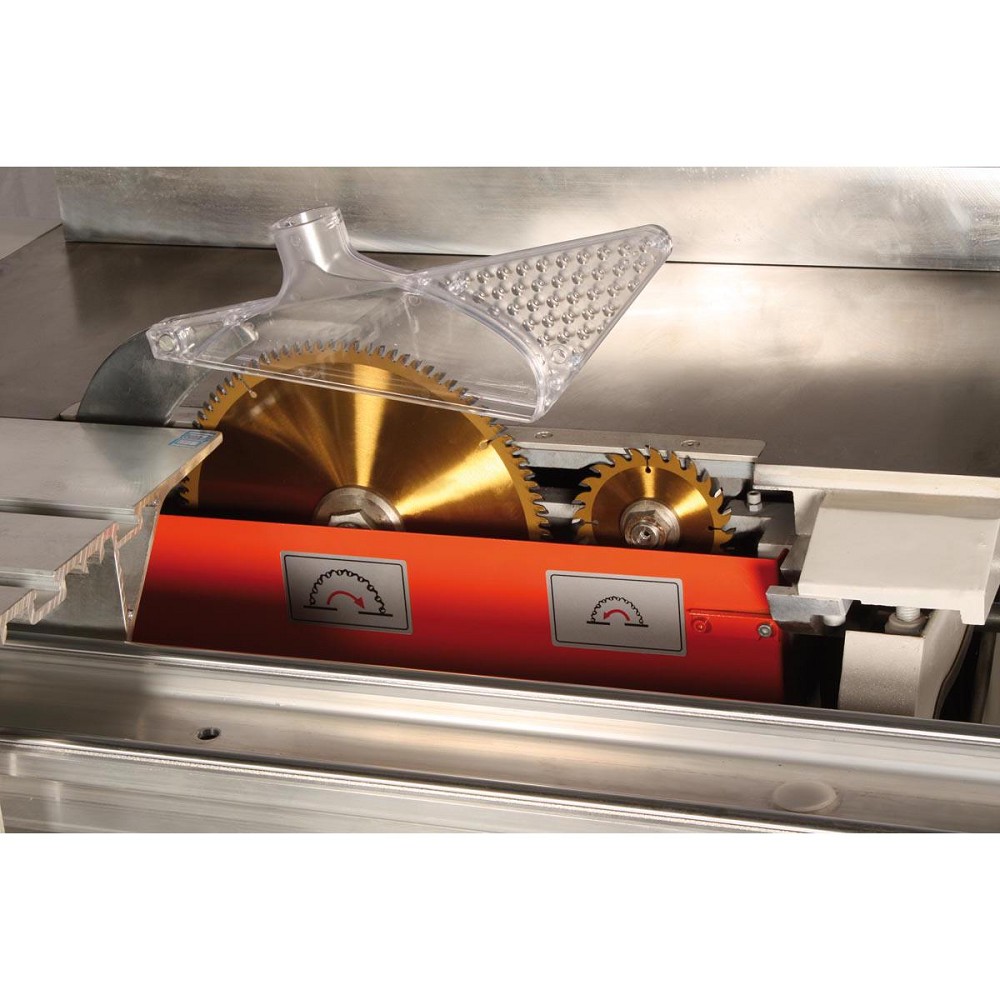

- equiped scoring unit powered by a separate motor
- compact control panel located at machine frontside for operation convenience
- smoothly running saw blade height and angle adjustment via hand wheel
- analog read out of saw blade adjustment (height and tilt)
- two different cutting speeds as standard
- high quality and stable machine body
- table extensions enable convenient working conditions

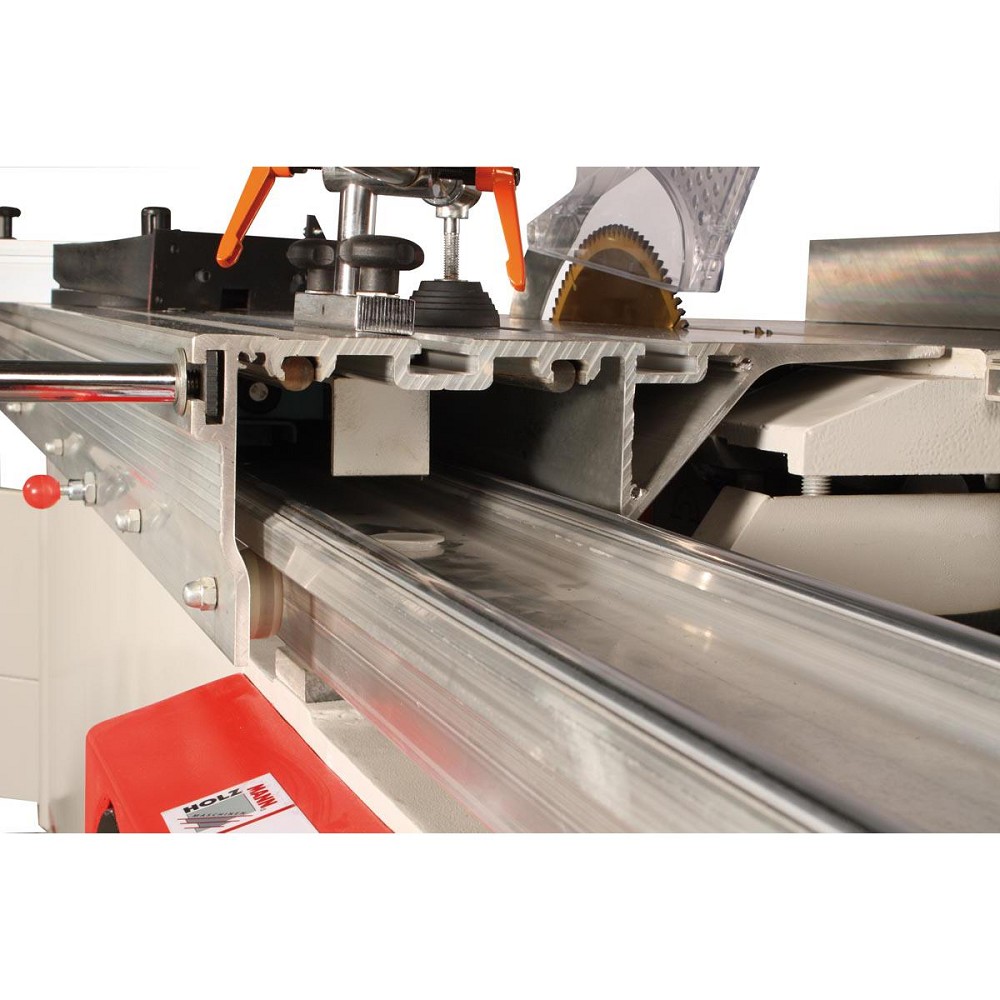

- double roller carriage aluminium sliding table with hardened steel guides, results in smooth running and highest precision
- heavy machine with massive, rugged but precise construction for max. cutting accuracy
- very accurate and solid rip fence with fine adjustment function
- extractable and solid mitre fence at outrigger table incl. 2 end stops
- max. cutting width at parallel fence 1150mm
- with LINIX-motors
